ROD EX 9018-B3MR H4R 1/8
PRODUCT FEATURES:
Premium low-hydrogen electrode reduces risk of hydrogen cracking in critical joints.
Stable arc with smooth strike/re-strike and easy slag removal enhances weld quality and user experience.
High tensile and yield strengths after stress relief make it suitable for structural and pressure applications.
Performs in multiple welding positions for versatility.
Compatible with both AC and DC+ power sources.
In stock
Only 2 left
SKU
LCN-ED032888
TTD1,310.63
PRODUCT DESCRIPTION:

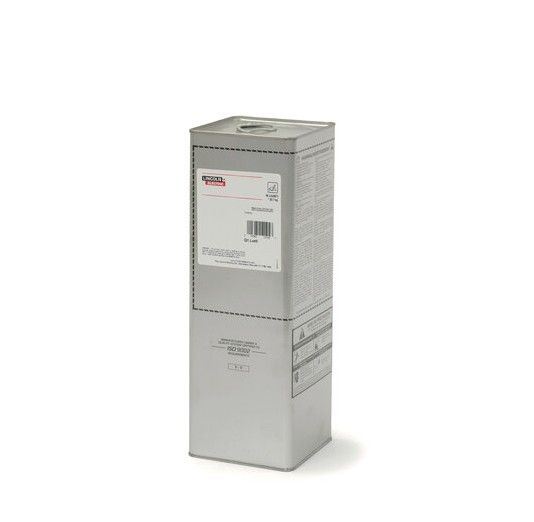

The Lincoln Electric LCN-ED032888 ROD EX 9018-B3MR H4R 1/8″ is a premium Excalibur® low-hydrogen stick welding electrode tailored for welding low-alloy steels such as 2.25% chromium / 1% molybdenum grades used in heavy industrial applications like pressure vessels, power plants, petrochemical process piping, and structural components. Classified AWS E9018-B3 H4R, this electrode delivers a smooth, stable arc with reliable slag removal and excellent mechanical properties, including high tensile and yield strength after stress relieving. Designed for use on both AC and DC+ machines and in all common welding positions (except vertical down), it’s supplied in a sealed 50 lb can for moisture protection and consistent performance.
DEPOSIT COMPOSITION:
E9018-B3 H4R REQUIREMENT:
%C: 0.05 - 0.12
%Cr: 2.00 - 2.50
%Mn: 0.90 max.
%Mo: 0.90 - 1.20
%P: 0.30 max.
%S: 0.03 max.
%Si: 0.80 max.
Diffusible Hydrogen mL/100g Weld Metal: 4 max.
1800F H20- As received: 0.15 max.
1800F H20- after 9hrs at 80F/80%RH: 0.4max
TYPICAL RESULTS:
%C: 0.08 - 0.12
%Cr: 2.16 - 2.47
%Mn: 0.78 - 0.90
%Mo: 0.90 - 1.11
%P: 0.01 - 0.02
%S: 0.01 max.
%Si: 0.44 - 0.60
Diffusible Hydrogen mL/100g Weld Metal: 1.0 - 3.0
1800F H20- As received: 0.01 - 0.10
1800F H20- after 9hrs at 80F/80%RH: 0.1 - 0.4
MECHANICAL PROPERTIES:
E9018-B3 H4R REQUIREMENT:
Yield Strength @0.2% Offset MPa (ksi): 530 (77) min.
Tensile Strength MPa (ksi): 620 (90) min.
Elongation %: 17 min.
TYPICAL RESULT, 1 HOUR@ 690°C (1275°F):
Yield Strength @0.2% Offset MPa (ksi): 600-670 (87-97)
Tensile Strength MPa (ksi): 700-780 (102-112)
Elongation %: 17-23
Hardness Rockwell B: 96-100
TECHNICAL SPECIFICATIONS:
Brand: Lincoln Electric
Item Model Number: ED032888
Product Type: Stick Welding Electrode
AWS/ ASME Classifications: E9018-B3 H4R
Series: Excalibur
Diameter: 1/8"
Length: 14"
Fluc Coating Type: Low-Hydrogen
Welding Positions: Flat, Horizontal, Overhead, Vertical up
Welding Current/ Polarity: AC and DC+ (DCEP)
Applicable Materials: Low - Alloy Steels
Typical Amperage Range: DC+, 85-160A/ AC, 90-170A
Shipping Weight: 50 lbs
| SKU | LCN-ED032888 |
|---|---|
| Weight | 0.000000 |
| Manufacturer | LINCOLN ELECTRIC |
