ROD EX 9018-B3MR H4R 5/32
PRODUCT FEATURES:
Lincoln Electric Excalibur 9018-B3 MR low-hydrogen stick welding electrode
Designed for welding low-alloy steels such as 2.25% chromium / 1% molybdenum steels.
Premium arc characteristics: smooth, stable arc with easy strike and re-strike.
Easy slag removal for faster cleanup.
Square coating burn-off improves puddle control and visibility.

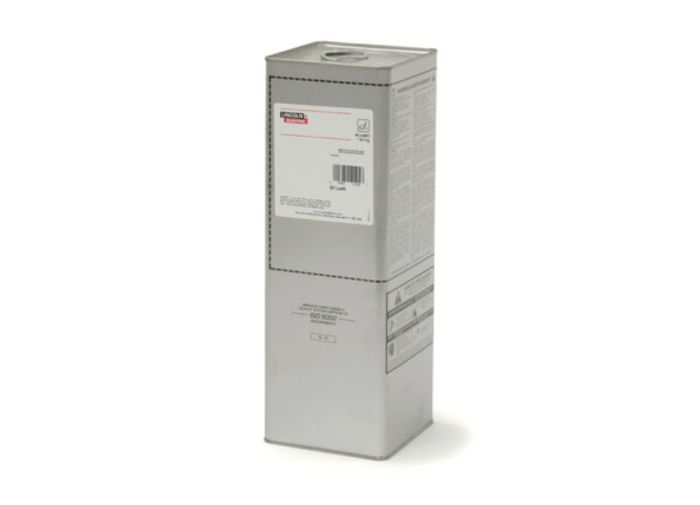

Supplied in a hermetically sealed 50 lb easy-open can to keep electrodes dry.
Typical operating ranges available depending on diameter and current type.
In stock
Only 6 left
SKU
LCN-ED032889
TTD1,293.75
PRODUCT DESCRIPTION:
The Lincoln Electric Excalibur 9018-B3 MR (SMAW) Stick Electrode — ED032889 is a premium low-hydrogen, low-alloy welding rod engineered for robust performance on chromium-molybdenum steels (such as 2.25 % Cr / 1 % Mo) found in pressure vessels, process piping, power generation, petrochemical and structural applications. Classified AWS E9018-B3 H4R, this rod delivers a smooth, stable arc with excellent puddle control, easy slag removal, and easy strike/re-strike. It supports all common welding positions (except vertical-down) and runs well on both AC and DC+ power sources.
MECHANICAL PROPERTIES:
E9018-B3 H4R REQUIREMENT:
Yield Strength @0.2% Offset MPa (ksi): 530 (77) min.
Tensile Strength MPa (ksi): 620 (90) min.
Elongation%: 17 min.
TYPICAL RESULT, 1 HOUR @690°C (1275°F):
Yield Strength @0.2% Offset MPa (ksi): 600-670 (87-97)
Tensile Strength MPa (ksi): 700-780 (102-112)
Elongation%: 17-23
Hardness Rockwell B: 96-100
DEPOSIT COMPOSITION:
E9018-B3 H4R REQUIREMENT:
%C: 0.05 - 0.12
%Cr: 2.00 - 2.50
%Mn: 0.90 max.
%Mo: 0.90 - 1.20
%P: 0.03 max.
%S: 0.03 max.
%Si: 0.80 max.
Diffusible Hydrogen mL/100g Weld Metal: 4 max.
1800F H20 - As received: 0.15max.
1800F H20 - After 9 hours at 80F/80%RH: 0.4 max.
TYPICAL RESULT:
%C: 0.08 - 0.12
%Cr: 2.16 - 2.47
%Mn: 0.78 - 0.90
%Mo: 0.90 - 1.11
%P: 0.01 - 0.02
%S: 0.01 max.
%Si: 0.44 - 0.60
Diffusible Hydrogen mL/100g Weld Metal: 1.0 - 3.0
1800F H20 - As received: 0.01 - 0.10
1800F H20 - After 9 hours at 80F/80%RH: 0.1 - 0.4
TECHNICAL SPECIFICATIONS:
Brand: Lincoln Electric
Item Model Number: ED032889
Product Type: Stick Welding Electrode
AWS Classification: E9018-B3 H4R
Series: Excalibur
Diameter: 5/32"
Length: 14"
Flux/ Coating: Low-Hydrogen Iron powder with squre coating burn off
Welding Positions: Flat, Horizontal, Overhead, Vertical Up
Welding Current/ Polarity: AC, DC+ (DCEP)
Applicable Materials: Low alloy steels
Typical Amperage Range: DC+ 110-210A/ AC, 115-220A
Shipping Weight: 50 lbs
| SKU | LCN-ED032889 |
|---|---|
| Weight | 50.000000 |
| Manufacturer | LINCOLN ELECTRIC |
