REGULATOR CYCLINDER LPG
PRODUCT FEATURES
External Relief Valve
Sure-Seat filtered high-pressure seat assembly
Nickel-Plated Bonnet
Shatter-Resistant Gauge Lenses
Color-Coded Labels
Neoprene Composite Diaphragm
External Relief Valve
Sure-Seat filtered high-pressure seat assembly
Nickel-Plated Bonnet
Shatter-Resistant Gauge Lenses
Color-Coded Labels
Neoprene Composite Diaphragm
In stock
Only 4 left
SKU
MILL-30-50-510
TTD899.94
INCLUDES

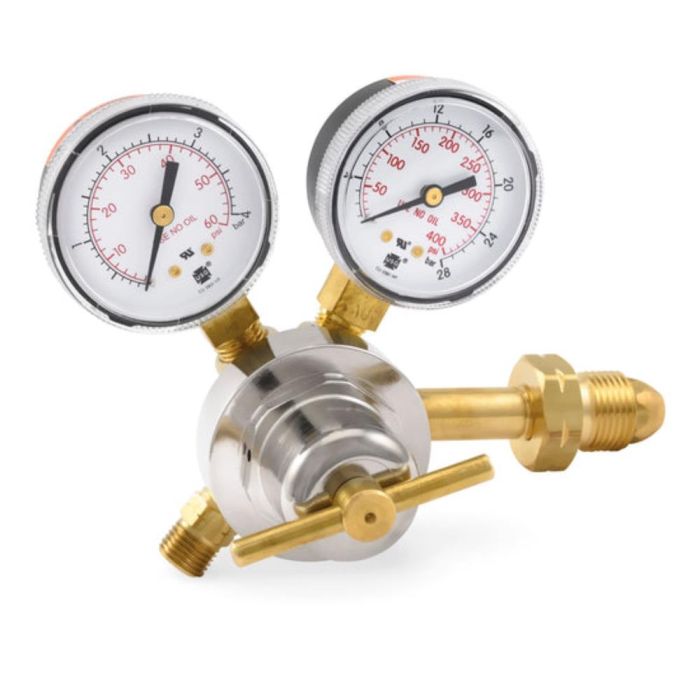

(1) Smith 30 Series LP Gas Regulator, 50 PSI - 30-50-510
PRODUCT DESCRIPTION
Series 30 single-stage regulators are extremely durable and contain our exclusive Sure Seat filtered seat technology for extended seat and regulator life. Filtered seats prevent contamination from entering the seating area, reducing repair costs and downtime. These highly accurate regulators are manufactured with a rugged forged body, corrosion-resistant bright nickel-plated bonnet and a highly durable neoprene composite diaphragm.
Industries and Applications
Aerospace
Construction
Heavy Equipment Manufacturing
Infrastructure
Manufacturing
Railcar
Shipbuilding
Boat / Yacht
High Purity Processing
TECHNICAL SPECFICIATIONS
Item: Gas Regulator
Body Dia.: 2"
Body Material: Solid Brass
CGA Connection Inlet: 510
CGA Connection Outlet: 9/16-18 LH B
Cylinder Gas: LP Gas
Delivery: 50 psi
Delivery Pressure Range: 50 psi
Diaphragm Material: Neoprene
Gas Service: Liquefied Propane
Gauge Size: 2"
Gauges Delivery Pressure: 60
Inlet Connection: CGA-510
Inlet Gauge: 400 psi
Max. Inlet Pressure: 400 psi
Outlet Connection: 9/16"-18 LH B
Overall Length: 4.75"
Regulator Capacity: Medium Duty
Stages: Single
Supply Pressure Gauge: 400 psi
Type: Single Stage
Height: 4.50 Inches
Width: 10.25 Inches
Length: 9.50 Inches
Item Weight: 2.81Lbs
Shipping Weight: 4lbs
(1) Smith 30 Series LP Gas Regulator, 50 PSI - 30-50-510
PRODUCT DESCRIPTION
Series 30 single-stage regulators are extremely durable and contain our exclusive Sure Seat filtered seat technology for extended seat and regulator life. Filtered seats prevent contamination from entering the seating area, reducing repair costs and downtime. These highly accurate regulators are manufactured with a rugged forged body, corrosion-resistant bright nickel-plated bonnet and a highly durable neoprene composite diaphragm.
Industries and Applications
Aerospace
Construction
Heavy Equipment Manufacturing
Infrastructure
Manufacturing
Railcar
Shipbuilding
Boat / Yacht
High Purity Processing
TECHNICAL SPECFICIATIONS
Item: Gas Regulator
Body Dia.: 2"
Body Material: Solid Brass
CGA Connection Inlet: 510
CGA Connection Outlet: 9/16-18 LH B
Cylinder Gas: LP Gas
Delivery: 50 psi
Delivery Pressure Range: 50 psi
Diaphragm Material: Neoprene
Gas Service: Liquefied Propane
Gauge Size: 2"
Gauges Delivery Pressure: 60
Inlet Connection: CGA-510
Inlet Gauge: 400 psi
Max. Inlet Pressure: 400 psi
Outlet Connection: 9/16"-18 LH B
Overall Length: 4.75"
Regulator Capacity: Medium Duty
Stages: Single
Supply Pressure Gauge: 400 psi
Type: Single Stage
Height: 4.50 Inches
Width: 10.25 Inches
Length: 9.50 Inches
Item Weight: 2.81Lbs
Shipping Weight: 4lbs
| SKU | MILL-30-50-510 |
|---|---|
| Weight | 4.000000 |
| Manufacturer | VICTOR |
