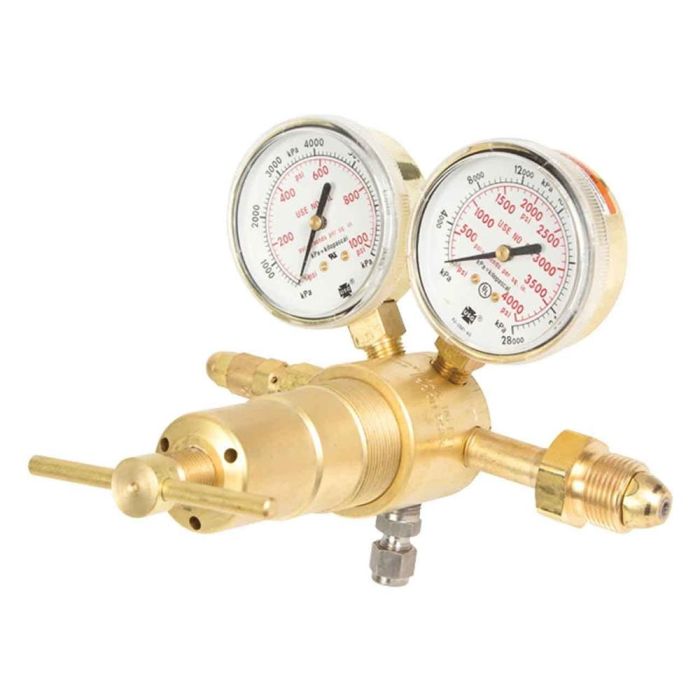

REGULATOR INERT SR4J-580
PRODUCT FEATURES
Machined brass body and housing cap
Cartridge type seat assembly with PCTFE seat
Delrin cap bushing for smooth adjustments
Sintered inlet filter, bronze
External adjustable relief valves on F and G range models
Model number SR4J-580
Machined brass body and housing cap
Cartridge type seat assembly with PCTFE seat
Delrin cap bushing for smooth adjustments
Sintered inlet filter, bronze
External adjustable relief valves on F and G range models
Model number SR4J-580
In stock
Only 5 left
SKU
VIC-0781-1448
TTD6,999.00
INCLUDES
(1) Victor 0781-1448 Machined Brass Inert Heavy-Duty High Pressure SR 4 Professional Regulator, CGA-580, 200 - 3000 psig
PRODUCT DESCRIPTION
The SR4 regulators are designed for heavy duty applications and for larger cylinders and ideally suited for pressure vessel testing. Heavy duty, high pressure piston regulator. Ideally suited for pressure vessel and dead-end testing. Delivery pressures up to 4500 psig on some models. All SR 4 series regulator models may be panel mounted. (1.75 Inch (44.5 mm) hole required in panel for mounting) For a flush panel mount installation order one panel mount nut 1409-0093. For an adjustable panel mount installation order two panel mount nuts 1409-0093
Victor® 0781-1448 SR 4 Series Professional Regulator, Heavy-Duty High Pressure, Gas Type: Inert, Gauge Range: Inlet: 4000 psig, Outlet: 4000 psig, Inlet Pressure: 3000 psig, Outlet Pressure: 200 - 3000 psig, Inlet Connection: CGA 580, Outlet Connection: 1/4 Inch, Flow Coefficient (Cv): 0.1147, Mounting: 1-3/4 Inch Hole Panel, Machined Brass, Brass, 6 Inch Length x 6-1/4 Inch Width x 6-1/2 Inch Height
TECHNICAL SPECIFICATIONS
Dimensions: 6 Inch Length x 6-1/4 Inch Width x 6-1/2 Inch Height
Finish/Color: Brass
Flow Coefficient (Cv): 0.1147
Gas Type: Inert
Gauge Range: Inlet: 4000 psig, Outlet: 4000 psig
Inlet Connection: CGA 580
Inlet Pressure: 3000 psig
Material: Machined Brass
Mounting: 1-3/4 Inch Hole Panel
Outlet Connection: 1/4 Inch
Outlet Pressure: 200 - 3000 psig
Type: Heavy-Duty High Pressure
Item Weight: 2.86lbs
Shipping Weight: 4lbs
(1) Victor 0781-1448 Machined Brass Inert Heavy-Duty High Pressure SR 4 Professional Regulator, CGA-580, 200 - 3000 psig
PRODUCT DESCRIPTION
The SR4 regulators are designed for heavy duty applications and for larger cylinders and ideally suited for pressure vessel testing. Heavy duty, high pressure piston regulator. Ideally suited for pressure vessel and dead-end testing. Delivery pressures up to 4500 psig on some models. All SR 4 series regulator models may be panel mounted. (1.75 Inch (44.5 mm) hole required in panel for mounting) For a flush panel mount installation order one panel mount nut 1409-0093. For an adjustable panel mount installation order two panel mount nuts 1409-0093
Victor® 0781-1448 SR 4 Series Professional Regulator, Heavy-Duty High Pressure, Gas Type: Inert, Gauge Range: Inlet: 4000 psig, Outlet: 4000 psig, Inlet Pressure: 3000 psig, Outlet Pressure: 200 - 3000 psig, Inlet Connection: CGA 580, Outlet Connection: 1/4 Inch, Flow Coefficient (Cv): 0.1147, Mounting: 1-3/4 Inch Hole Panel, Machined Brass, Brass, 6 Inch Length x 6-1/4 Inch Width x 6-1/2 Inch Height
TECHNICAL SPECIFICATIONS
Dimensions: 6 Inch Length x 6-1/4 Inch Width x 6-1/2 Inch Height
Finish/Color: Brass
Flow Coefficient (Cv): 0.1147
Gas Type: Inert
Gauge Range: Inlet: 4000 psig, Outlet: 4000 psig
Inlet Connection: CGA 580
Inlet Pressure: 3000 psig
Material: Machined Brass
Mounting: 1-3/4 Inch Hole Panel
Outlet Connection: 1/4 Inch
Outlet Pressure: 200 - 3000 psig
Type: Heavy-Duty High Pressure
Item Weight: 2.86lbs
Shipping Weight: 4lbs
| SKU | VIC-0781-1448 |
|---|---|
| Weight | 4.000000 |
| Manufacturer | VICTOR TECHNOLOGIES |
