REGULATOR SR4K-677 1/4"SS
PRODUCT FEATURES
Machined brass body and housing cap
Cartridge type seat assembly with PCTFE seat
Piston type actuation brass
Delrin cap bushing for smooth adjustments
External adjustable relief valve on F and G range model
Hydrogen models have ventable relief valves (J Series does not)
Sintered inlet filter bronze
Machined brass body and housing cap
Cartridge type seat assembly with PCTFE seat
Piston type actuation brass
Delrin cap bushing for smooth adjustments
External adjustable relief valve on F and G range model
Hydrogen models have ventable relief valves (J Series does not)
Sintered inlet filter bronze
In stock
Only 9 left
SKU
VIC-0781-1473
TTD7,499.00
INCLUDES

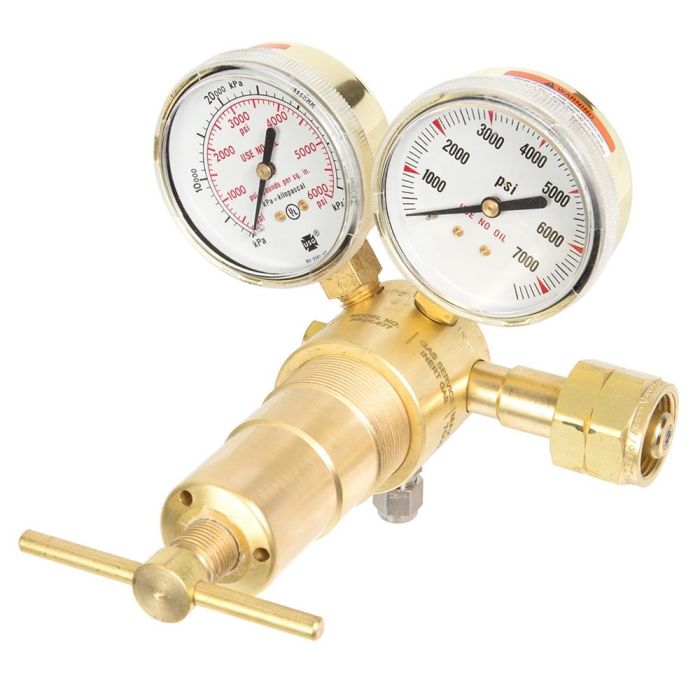

(1) Victor 0781-1473 SR 4K-677 Inert Gas Heavy Duty High Pressure Piston Regulator
PRODUCT DESCRIPTION
Victor 0781-1473 SR4K Single Stage heavy-duty High Pressure Inert Gas Manifold Regulator (Model SR4K-677) offers 300 - 4500 PSIG of delivery that is perfect for pressure vessel and dead-end testing. Regulator with maximum inlet pressure of 7500 PSIG features a machined brass body with housing cap and has 2 1/2" brass gauges having brass piston with delrin cap bushing for smooth adjustments. Regulator comes with 677 CGA inlet connection having bronze sintered filter and 1/4" swaglok outlet connection with 1/4' stainless tube fitting. 6" X 6 1/4" X 6 1/2" Regulator features a cartridge type seat assembly with PCTFE seat and an external adjustable relief valves. Heavy Duty, high pressure piston regulator, ideally suited for pressure vessel and dead-end testing. Delivery pressures up to 4500 PSIG on some models. Design/Construction, Machined brass body and housing cap. 2.5" gauges - brass. Cartridge type seat assembly with PCTFE seat. Piston type actuation - brass. Delrin cap bushing for smooth adjustments. External adjustable relief valve on F and G range models. Hydrogen models have ventable relief valves (J Series does not). Sintered inlet filter - bronze.
TECHNICAL SPECIFICATIONS
SKU: 0781-1473
Series: SR 4
Division: Heavy Duty
Gas: Inert
Delivery Range: 300-4500
Max Inlet Pressure: 7500
CGA Inlet Connection: 677
CGA Oulet Connection: 1/4" Swaglok®
Item Weight: 2.90lbs
Shipping Weight: 4lbs
(1) Victor 0781-1473 SR 4K-677 Inert Gas Heavy Duty High Pressure Piston Regulator
PRODUCT DESCRIPTION
Victor 0781-1473 SR4K Single Stage heavy-duty High Pressure Inert Gas Manifold Regulator (Model SR4K-677) offers 300 - 4500 PSIG of delivery that is perfect for pressure vessel and dead-end testing. Regulator with maximum inlet pressure of 7500 PSIG features a machined brass body with housing cap and has 2 1/2" brass gauges having brass piston with delrin cap bushing for smooth adjustments. Regulator comes with 677 CGA inlet connection having bronze sintered filter and 1/4" swaglok outlet connection with 1/4' stainless tube fitting. 6" X 6 1/4" X 6 1/2" Regulator features a cartridge type seat assembly with PCTFE seat and an external adjustable relief valves. Heavy Duty, high pressure piston regulator, ideally suited for pressure vessel and dead-end testing. Delivery pressures up to 4500 PSIG on some models. Design/Construction, Machined brass body and housing cap. 2.5" gauges - brass. Cartridge type seat assembly with PCTFE seat. Piston type actuation - brass. Delrin cap bushing for smooth adjustments. External adjustable relief valve on F and G range models. Hydrogen models have ventable relief valves (J Series does not). Sintered inlet filter - bronze.
TECHNICAL SPECIFICATIONS
SKU: 0781-1473
Series: SR 4
Division: Heavy Duty
Gas: Inert
Delivery Range: 300-4500
Max Inlet Pressure: 7500
CGA Inlet Connection: 677
CGA Oulet Connection: 1/4" Swaglok®
Item Weight: 2.90lbs
Shipping Weight: 4lbs
| SKU | VIC-0781-1473 |
|---|---|
| Weight | 4.000000 |
| Manufacturer | VICTOR TECHNOLOGIES |
