PLASMA CUTMASTER 82 20'HD
PRODUCT FEATURES
9 kW rated output, 40% Duty Cycle at 80A
3/4 in. (20 mm) recommended cut capacity with 1-1/2 in. (38 mm) maximum cut and 5/8 in. (15 mm) pierce rating
Front Panel LEDs indicate status conditions for maximum efficiency
Storage compartment for convenient access to spare parts and consumables
Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch
True Guard roll bar provides easy transportation and protection for unmatched durability
Multi-voltage allows operation from 280 to 480 Volts in a single power supply
Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
Lighter weight design for maximum portability
9 kW rated output, 40% Duty Cycle at 80A
3/4 in. (20 mm) recommended cut capacity with 1-1/2 in. (38 mm) maximum cut and 5/8 in. (15 mm) pierce rating
Front Panel LEDs indicate status conditions for maximum efficiency
Storage compartment for convenient access to spare parts and consumables
Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch
True Guard roll bar provides easy transportation and protection for unmatched durability
Multi-voltage allows operation from 280 to 480 Volts in a single power supply
Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
Lighter weight design for maximum portability
In stock
Only 2 left
SKU
VIC-1-1130-1
TTD33,999.00
INCLUDES

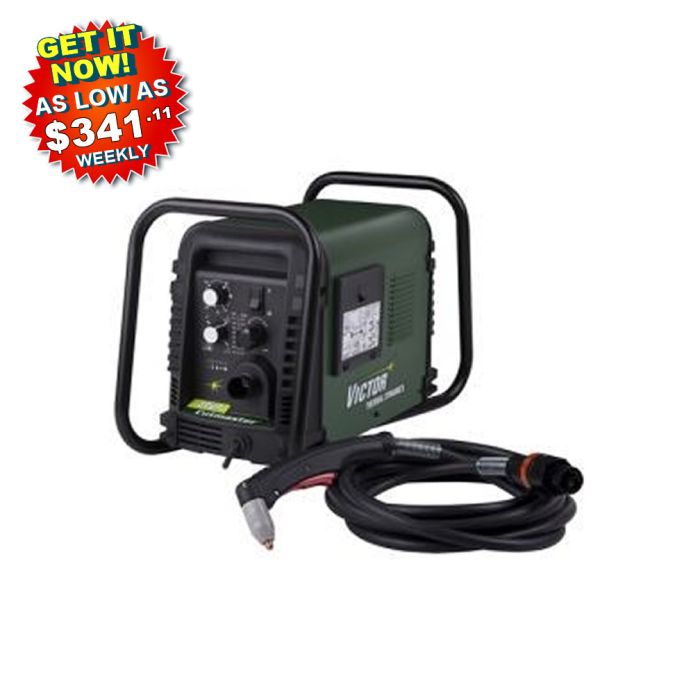

(1) Thermal Dynamics Cutmaster 82 230V Plasma System Part #1-1130-1
PRODUCT DESCRIPTION
The CUTMASTER 82 Plasma Cutter weighs in at a mere 43 lbs. (19.5 kg), almost 50% less than its leading competitor, while still offering superior cutting power.
Don’t let the size of this unit fool you, it’s more than capable of cutting 3/4" (20 mm) with a maximum capability of 1½" (40 mm). The Thermal Dynamics Cutmaster 82, like all other TRUE CUTMASTER cutters, is equipped with the 1Torch.
Applications
Heavy Fabrication
Manufacturing
Contractors
TECHNICAL SPECIFICATIONS
Process(es): Manual Air Plasma Cutting
Torch: SL60 with ATC (hand), SL100 (mechanized)
Certifications: IP23S
Industrial Applications: Heavy Fabrication, Manufacturing, Contractors
Cut Capacity: 3/4 in. (20mm) Recommended Cut, 1.50 in. (40mm) Maximum Cut
Rated Output: 80A
Amperage Range: 20-80 Amps
Output Power: 9.0kW
Input Volts: Multi-Voltage/Phase Capable -208-230/460V, 1/3Ph, 50/60 Hz, Configured for 208-230V 1Ph, 400V, 3Ph, 50Hz, 600V, 3Ph, 50/60Hz
Input Amps @ Rated Output: 72A @230V, 1Ph, 39A @230V, 3Ph, 21A @460V, 3Ph
Item Weight: 43 lbs (19.5kg)
Duty Cycle: 40% @ 80A, 60% @ 65A, 100% @ 55A
Plasma Gas: Air @ 70psi (4.8 bar)
Gas Flow: 6.7 cfm (190 lpm)
Pilot: Start Cartridge
Control: Hand Torch Switch or Hand Pendant Control
Shipping Weight: 45lbs
(1) Thermal Dynamics Cutmaster 82 230V Plasma System Part #1-1130-1
PRODUCT DESCRIPTION
The CUTMASTER 82 Plasma Cutter weighs in at a mere 43 lbs. (19.5 kg), almost 50% less than its leading competitor, while still offering superior cutting power.
Don’t let the size of this unit fool you, it’s more than capable of cutting 3/4" (20 mm) with a maximum capability of 1½" (40 mm). The Thermal Dynamics Cutmaster 82, like all other TRUE CUTMASTER cutters, is equipped with the 1Torch.
Applications
Heavy Fabrication
Manufacturing
Contractors
TECHNICAL SPECIFICATIONS
Process(es): Manual Air Plasma Cutting
Torch: SL60 with ATC (hand), SL100 (mechanized)
Certifications: IP23S
Industrial Applications: Heavy Fabrication, Manufacturing, Contractors
Cut Capacity: 3/4 in. (20mm) Recommended Cut, 1.50 in. (40mm) Maximum Cut
Rated Output: 80A
Amperage Range: 20-80 Amps
Output Power: 9.0kW
Input Volts: Multi-Voltage/Phase Capable -208-230/460V, 1/3Ph, 50/60 Hz, Configured for 208-230V 1Ph, 400V, 3Ph, 50Hz, 600V, 3Ph, 50/60Hz
Input Amps @ Rated Output: 72A @230V, 1Ph, 39A @230V, 3Ph, 21A @460V, 3Ph
Item Weight: 43 lbs (19.5kg)
Duty Cycle: 40% @ 80A, 60% @ 65A, 100% @ 55A
Plasma Gas: Air @ 70psi (4.8 bar)
Gas Flow: 6.7 cfm (190 lpm)
Pilot: Start Cartridge
Control: Hand Torch Switch or Hand Pendant Control
Shipping Weight: 45lbs
| SKU | VIC-1-1130-1 |
|---|---|
| Weight | 43.000000 |
| Manufacturer | VICTOR TECHNOLOGIES |
