TOOL CRIMPING CABLE LUG
PRODUCT FEATURES:
Crimping Type: Performs indent crimping (a single punch into the lug) for a strong, "cold-weld" connection.
Wide Compatibility: Works with both copper and aluminum cable lugs and connectors.
Die-less Adjustment: Features an easy-to-use non-ratchet adjusting screw mechanism to quickly set the crimping range, eliminating the need for multiple die sets.
Heavy Duty Design: Built with special steel components and heat-treated critical parts for long life and durability in industrial applications.
Ergonomics: Designed with long handles (approx. 595mm) to provide sufficient leverage for manual crimping of large gauge cables
In stock
Only 20 left
SKU
BPW-KHOD150
TTD599.00
PRODUCT DESCRIPTION:

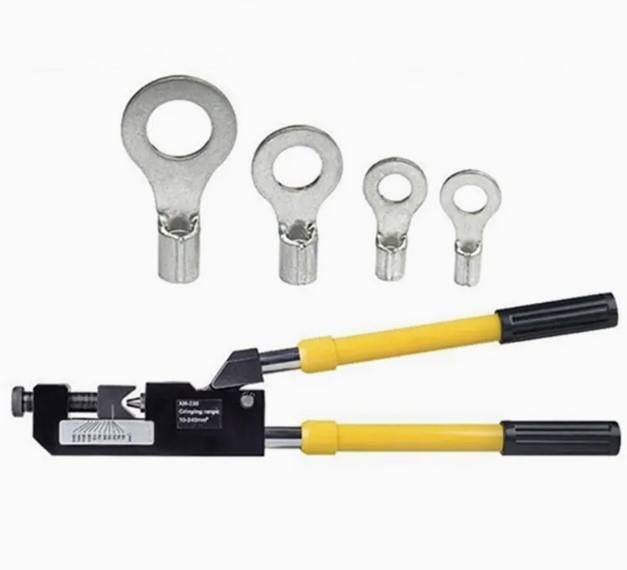

The OSH-KHOD150 is a heavy-duty, manual indent crimping tool designed for securely attaching uninsulated copper and aluminum cable lugs to large gauge cables. It uses a single adjustment screw to cover a wide range of wire sizes without requiring separate dies.
TECHNICAL SPECIFICATIONS:
Specification Detail
Item Number/Model OSH-KHOD150 (Equivalent to KH-150 model)
Tool Type Manual Indent Crimping Tool
Crimping Capacity (mm²) 10 mm² to 120 mm² (DIN standard)
Crimping Capacity (AWG/MCM) AWG 8 to 4/0 (Aluminum)
AWG 8 to 250 MCM (Copper)
Tool Length Approx. 595 mm to 620 mm (23.4 to 24.4 inches)
Tool Weight 7lbs
Construction Special treated tool steel
Operation Hand operated, non-ratchet, screw adjustable
Shipping weight: 7lbs
| SKU | BPW-KHOD150 |
|---|---|
| Weight | 7.000000 |
