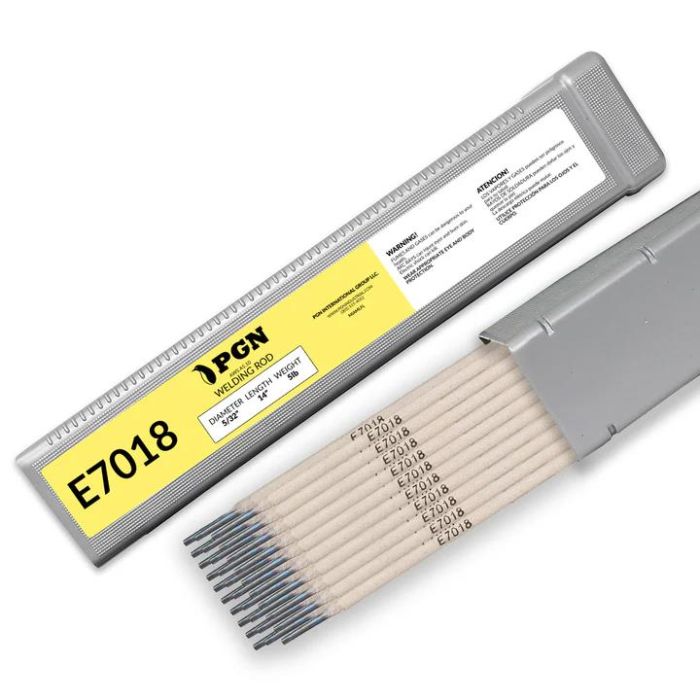

ELECTRODE E7018 5/32"
PRODUCT FEATURES:
Type: E7018 Low-Hydrogen Stick Welding Electrode
Diameter: 5/32 inch (4.0 mm)
Function: Heavy-duty, high-strength welding for thick mild and low-alloy steel sections
Key Feature: Iron powder coating for maximum deposition rates and efficient metal transfer
Quality: Produces high-quality, crack-resistant welds with excellent impact toughness
Versatility: Suitable for all welding positions (except vertical down) in high-stress structural applications
In stock
Only 1000 left
SKU
OX-7018532
TTD25.00
PRODUCT DESCRIPTION:
The OX-7018532 (Oxford Alloy) is a 5/32" diameter E7018 electrode designed for rapid metal deposition on thick plate and heavy-duty structural steel. This larger diameter rod is the standard choice for fill and cap passes in bridge construction, shipbuilding, and pressure vessel fabrication. The iron powder in the low-hydrogen flux coating ensures a very stable arc with minimal spatter and a high deposition rate, significantly increasing productivity. Because it is a low-hydrogen electrode, it is essential for preventing hydrogen-induced cracking in high-carbon and high-strength steels. These electrodes should be stored in a rod oven to maintain their low-hydrogen properties once the hermetically sealed can is opened.
TECHNICAL SPECIFICATIONS:
Classification: AWS A5.1 / ASME SFA 5.1 E7018
Diameter: 5/32"
Tensile Strength: 70,000 psi (Minimum)
Yield Strength: 58,000 psi (Minimum)
Elongation: 22%
Polarity: DCEP (Electrode Positive) or AC
Amperage Range: 130A to 220A
Shipping Weight: 50 lbs
| SKU | OX-7018532 |
|---|---|
| Weight | 50.000000 |
