WIRE MIG 70S6 030X11LB MS 0
PRODUCT FEATURES
High grade steel is used to optimize consistency.
Electroplated copper coating for reduced flaking and weld performance.
Full manufacturing process is totally automated to increase consistency in weld performance.
Our spools are precision would to achieve optimal performance.
Expansive approvals include ISO9001, CCS, ABS, LR, GL, DNV, TUV, CE, and CWB.
INCLUDES

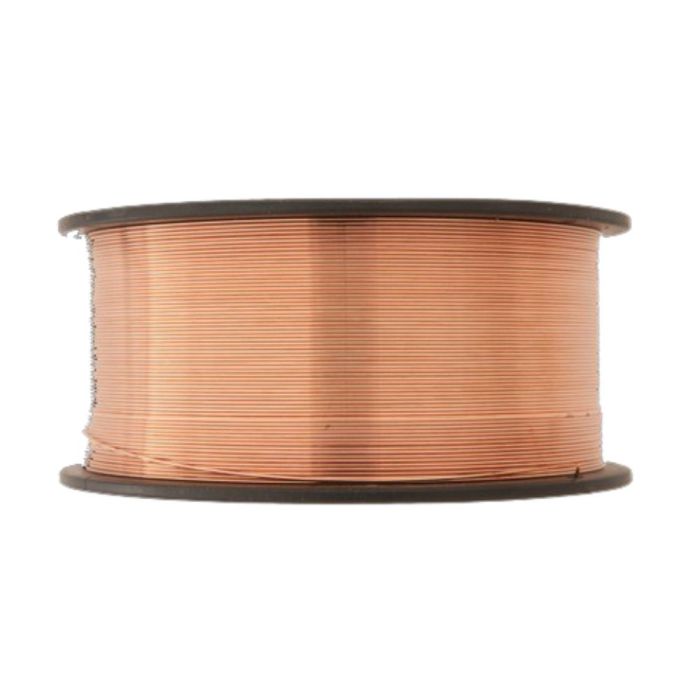

(1) ER70S-6 Carbon Steel Welding Wire, 0.03 Inch dia., 11 lb Spool - 70S603011
High grade steel is used to optimize consistency.
Electroplated copper coating for reduced flaking and weld performance.
Full manufacturing process is totally automated to increase consistency in weld performance.
Our spools are precision would to achieve optimal performance.
Expansive approvals include ISO9001, CCS, ABS, LR, GL, DNV, TUV, CE, and CWB.
INCLUDES
(1) ER70S-6 Carbon Steel Welding Wire, 0.03 Inch dia., 11 lb Spool - 70S603011
In stock
Only 17 left
SKU
WP-ER70S603011
TTD269.00
PRODUCT DESCRIPTION
70S603011 Carbon Steel Welding Wire, Solid, Diameter: 0.03 Inch, Current Type: DC (Reverse), Amperage: 135 - 230 amp, Package: 11 lb Spool, AWS Class: AWS A5.18: ER70S-6, Tensile Strength: 85000 - 90000 psi, Yield Strength: 70000 - 75000 psi, Elongation in 2" (%): 28% (As Welded), Charpy V-Notch: 30 - 40 ft.-lb. For 98% Argon/2% Oxygen, Reduction in Area: 55 - 70% (As Welded), Welding Process: MIG (GMAW And SAW), Weld Metal Composition: 0.06-0.15% Carbon (C), 0.15% Chromium (Cr), 0.15% Nickel (Ni), 1.1-1.85% Manganese (Mn), 0.8-1.15% Silicon (Si), 0.025% Phosphorous (P), 0.035% Sulphur (S), 0.5% Copper (Cu), 0.15% Molybdenum (Mo), 0.03% Vanadium (V), Balanced Iron (Fe), 0.5% Other
TECHNICAL SPECIFICATIONS
SKU: 70S603011
Brand: Victory
Amperage Rating: 40-145
Applicable Materials: See Data Sheet
Chemical Composition: See Data Sheet
Container Size: 11 lb
Container Type: Spool
Series: 70S-6
Type: MIG Wire
Item Weight: 11lbs
Shipping Weight: 11lbs
70S603011 Carbon Steel Welding Wire, Solid, Diameter: 0.03 Inch, Current Type: DC (Reverse), Amperage: 135 - 230 amp, Package: 11 lb Spool, AWS Class: AWS A5.18: ER70S-6, Tensile Strength: 85000 - 90000 psi, Yield Strength: 70000 - 75000 psi, Elongation in 2" (%): 28% (As Welded), Charpy V-Notch: 30 - 40 ft.-lb. For 98% Argon/2% Oxygen, Reduction in Area: 55 - 70% (As Welded), Welding Process: MIG (GMAW And SAW), Weld Metal Composition: 0.06-0.15% Carbon (C), 0.15% Chromium (Cr), 0.15% Nickel (Ni), 1.1-1.85% Manganese (Mn), 0.8-1.15% Silicon (Si), 0.025% Phosphorous (P), 0.035% Sulphur (S), 0.5% Copper (Cu), 0.15% Molybdenum (Mo), 0.03% Vanadium (V), Balanced Iron (Fe), 0.5% Other
TECHNICAL SPECIFICATIONS
SKU: 70S603011
Brand: Victory
Amperage Rating: 40-145
Applicable Materials: See Data Sheet
Chemical Composition: See Data Sheet
Container Size: 11 lb
Container Type: Spool
Series: 70S-6
Type: MIG Wire
Item Weight: 11lbs
Shipping Weight: 11lbs
| SKU | WP-ER70S603011 |
|---|---|
| Weight | 11.000000 |
