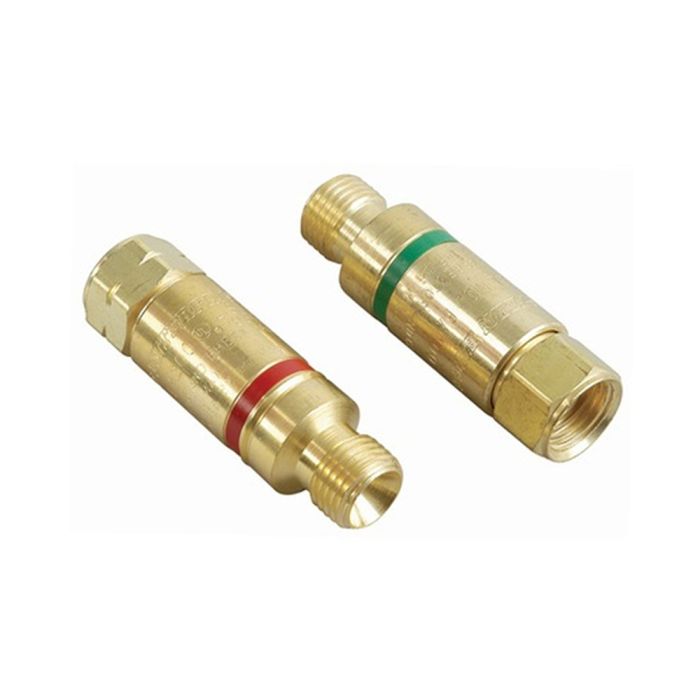

FLASHBACK ARRESTOR TORCH
PRODUCT FEATURES:
FA-10 torch style models are designed to be installed at the torch end
Machined from high quality brass with stainless steel operating spring and valve disc
Feature low open/close pressures: 3 oz to open valve and 10 oz reverse pressure to positively close valve
Color-coded for gas service to provide added safety
Internal check valves designed to prevent reverse flow and accidental mixing of oxygen and fuel gases
Torch and regulator models provide downstream and upstream protection
10 Inch maximum cutting capacity
For stopping flashbacks by preventing ignition of mixed gases and to protect equipment such as hoses, regulators and cylinders
Set includes FA-100P, FA-200P flashback arrestors
FA-10 torch style models are designed to be installed at the torch end
Machined from high quality brass with stainless steel operating spring and valve disc
Feature low open/close pressures: 3 oz to open valve and 10 oz reverse pressure to positively close valve
Color-coded for gas service to provide added safety
Internal check valves designed to prevent reverse flow and accidental mixing of oxygen and fuel gases
Torch and regulator models provide downstream and upstream protection
10 Inch maximum cutting capacity
For stopping flashbacks by preventing ignition of mixed gases and to protect equipment such as hoses, regulators and cylinders
Set includes FA-100P, FA-200P flashback arrestors
In stock
Only 2 left
SKU
WES-FA10
TTD399.00
PRODUCT DESCRIPTION:
Western® flash arrestor bodies with adaptor nuts on inlet and outlet sides can be ordered for special applications. Adaptor nuts with a ball-seat check valve are also available for inlet side of flash arrestor body. Standard CGA connections are available on adaptor, tee block and pigtails. Units are factory assembled and tested for efficient service. Flash arrestors are UL listed for acetylene. All cylinder connections are made to CGA specifications. Check valves are designed to prevent the mixing of gases in hoses and regulators. Safety first Western strongly encourages users of compressed gases to adhere to all safety guidelines and practices. Only an absolute and constant respect for compressed gases is acceptable for safe operations. Refer to the Western safety products such as check valves, flash arrestors, and relief valves
TECHNICAL SPECIFICATIONS:
Connection: 9/16-18 Hose x 9/16-18 Torch
Finish/Color: Brass
Gas Service: Oxygen And Fuel
Material: Brass
Operating Pressure: 125 psig (Oxygen), 22 psig (Fuel Gas)
Shipping Weight: 1 lb.
Western® flash arrestor bodies with adaptor nuts on inlet and outlet sides can be ordered for special applications. Adaptor nuts with a ball-seat check valve are also available for inlet side of flash arrestor body. Standard CGA connections are available on adaptor, tee block and pigtails. Units are factory assembled and tested for efficient service. Flash arrestors are UL listed for acetylene. All cylinder connections are made to CGA specifications. Check valves are designed to prevent the mixing of gases in hoses and regulators. Safety first Western strongly encourages users of compressed gases to adhere to all safety guidelines and practices. Only an absolute and constant respect for compressed gases is acceptable for safe operations. Refer to the Western safety products such as check valves, flash arrestors, and relief valves
TECHNICAL SPECIFICATIONS:
Connection: 9/16-18 Hose x 9/16-18 Torch
Finish/Color: Brass
Gas Service: Oxygen And Fuel
Material: Brass
Operating Pressure: 125 psig (Oxygen), 22 psig (Fuel Gas)
Shipping Weight: 1 lb.
| SKU | WES-FA10 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | WESTERN ENTERPRISES |
