FLUX ALUMINUM BRAZING 8OZ
PRODUCT FEATURES
Specifically-forumated flux for controlled atmospheric brazing
Water-soluble residue
Aluminum-based flux with zinc chloride
Has a Working Temperature Range of 915-1115°F (490.5-601.6°C)
Works on furnace and automatic flame brazing
Usable with 4043, 4047 (718), 4145, or 1100 brazing filler alloy
Satisfies AMS 3412D specification
Sold as 1/2 LB containers
Specifically-forumated flux for controlled atmospheric brazing
Water-soluble residue
Aluminum-based flux with zinc chloride
Has a Working Temperature Range of 915-1115°F (490.5-601.6°C)
Works on furnace and automatic flame brazing
Usable with 4043, 4047 (718), 4145, or 1100 brazing filler alloy
Satisfies AMS 3412D specification
Sold as 1/2 LB containers
In stock
Only 125 left
SKU
TECH-CS612
TTD169.00
INCLUDES
(1) Aluminum Brazing Powder Flux - CS612
PRODUCT DESCRIPTION

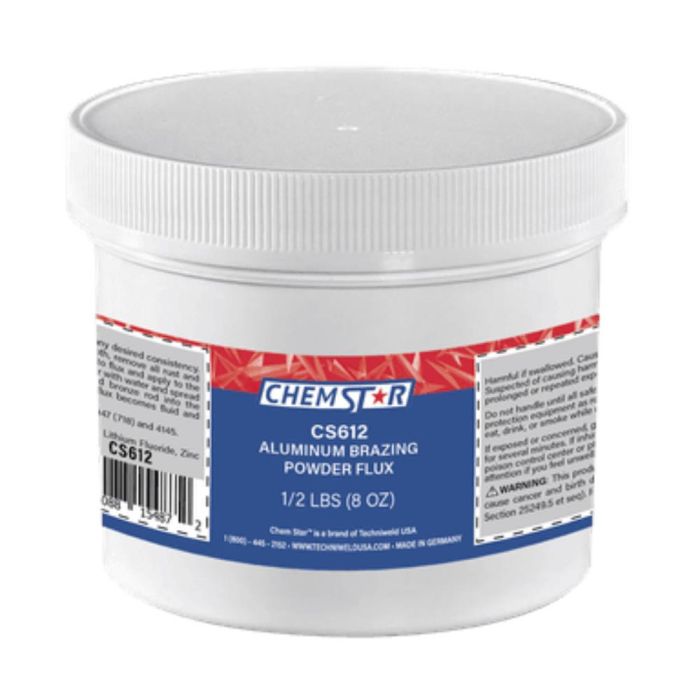

Chem Star All-Purpose Aluminum Brazing Powder Flux (8 oz.)
Applications
• All-purpose flux for torch brazing with aluminum alloys. It is
especially effective with common aluminum base materials
such as 1100, 3003, and 6061. The recommended filler
metals are 4047 (718) and 4145.
• Manufacturing - Architectural and Structural Metals, Mining,
Agricultural, Motor Vehicles, Aerospace, Shipbuilding
• Construction - Residential, Commercial, Bridges, Dams,
Utilities
• Or any other industry where welders may work
TECHNICAL SPECIFICATIONS
Appearance: White paste
Odor: Weak
Boiling Range: 446°F (230°C)
Working Range: 915-1115°F (490.5-601.6°C)
Flash Point: > 273.2°F (134°C)
Ignition Temperature: 590°F (310°C)
PH 68°F (20°C): 6-7
Vapor Pressure 68°F (20°C): 0.01 hPa
Size: 8oz
Packaging: Individually Packaged, 12/Case
Country of origin: US
Item Weight: 0.84lbs
Shipping Weight: 1lb
(1) Aluminum Brazing Powder Flux - CS612
PRODUCT DESCRIPTION
Chem Star All-Purpose Aluminum Brazing Powder Flux (8 oz.)
Applications
• All-purpose flux for torch brazing with aluminum alloys. It is
especially effective with common aluminum base materials
such as 1100, 3003, and 6061. The recommended filler
metals are 4047 (718) and 4145.
• Manufacturing - Architectural and Structural Metals, Mining,
Agricultural, Motor Vehicles, Aerospace, Shipbuilding
• Construction - Residential, Commercial, Bridges, Dams,
Utilities
• Or any other industry where welders may work
TECHNICAL SPECIFICATIONS
Appearance: White paste
Odor: Weak
Boiling Range: 446°F (230°C)
Working Range: 915-1115°F (490.5-601.6°C)
Flash Point: > 273.2°F (134°C)
Ignition Temperature: 590°F (310°C)
PH 68°F (20°C): 6-7
Vapor Pressure 68°F (20°C): 0.01 hPa
Size: 8oz
Packaging: Individually Packaged, 12/Case
Country of origin: US
Item Weight: 0.84lbs
Shipping Weight: 1lb
| SKU | TECH-CS612 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | TECHNIWELD |
