JOINTER/PLANER 8" COMBO 13A 120V 29"JOINTER TABLE 17.5"PLANER TABLE JJP-8BT
707400, JET JJP-8BT, 8" Jointer / Planer Combo
PRODUCT FEATURES:
Combination bench top jointer & planer provides a 2 in 1 machine to maximize work space
Integrated cord wrap makes transporting easy and ensures workshop safety
Compact bench top design fits conveniently in small shop environments
Heavy Duty 13 Amp motor for various cutting applications
Two high speed steel striaght knives for smooth cuts
Oversized, ergonomic knobs provide ease of use and maximum control
Large aluminum extruded fence 4-1/8" tall and 21" long
Sheet metal out feed table with height adjustment supports long work pieces and helps reduce snipe
Planing and joining tables lock
Precision machined table top ensures a smooth, straight cut
17-1/2-inch by 8-1/2" wide planer table surface supports material on either side of the blade
4-1/8 inch maximum planer capacity works with common stock sizes
19-inch table supports materials for jointing
Cast aluminum jointing table is 29" long and 8-1/4" wide overall
Maximum cut depth of 1/8" with the cut adjusted using a single knob at the end of the infeed table
Paddle switch uses key for safe operation
Pushbutton next to the paddle switch resets the automatic thermal protection circuit.
The motor powers the cutterhead and feed rollers using tried and true belt and chain drives
In stock
Only 3 left
SKU
JET-707400
TTD6,999.00
PRODUCT DESCRIPTION
If you've got a small shop, or limited space on the job, the new JET® B3NCH 8" Jointer/Planer Combo is right for you. This powerhouse has features usually only found on big floor models. Precision adjustment knobs, compact design, and a powerful 13 Amp motor are only a few features that make this jointer/planer the right choice for wherever you may need it.
The JET 8" Jointer/Planer is powered by a 13A, 120V (only) motor. A paddle-style switch controls the motor. This switch has a removable “key” that helps prevent usage of the machine when you are not present. A push button next to the paddle switch resets the automatic thermal protection circuit.
Power with Precision
The motor power is delivered to the cutterhead with a drive belt for smooth, consistent operation. The cutterhead spins at 9000 RPM to give the best overall performance with the various wood species and grain types you may encounter. The motor also powers the feed rollers for the planning function using a chain drive. The entire drive system is enclosed within a housing that keeps you safe while helping to protect the mechanism from dust contamination.

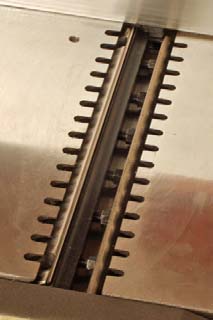

Knife System
The twin knife system is designed to be consistent yet easy to adjust.
The precision machined, all-steel cutterhead is equipped with two high-quality knives. The knives are 8-1/4"-long and 0.060" thick and made from premium steel so they take and hold a sharp edge. The knives are retained with tried and true wedge blocks and gib screws. A jackscrew is located at each end of the knives to make setting critical heights easier and more accurate. A knife setting gauge is also provided to make setting the knives fast and easy. This cutterhead is used for both jointing and planning operations. The large diameter and mass of the all steel cutterhead body adds considerable inertia that helps keep the JET 8" Jointer/Planer cutting smoothly.

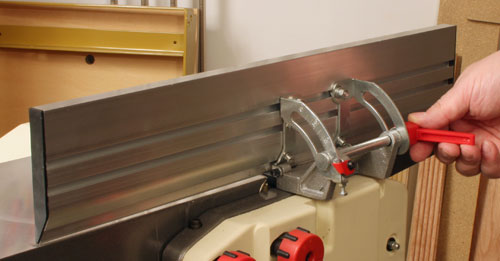

Jointing Table and Fence
The infeed table adjustment (left) is operated by a single, easy to use knob. The fence has a full 45-degree (out) adjustment (right) and locks with a repositionable lever on the rear.
The cast aluminum jointing table is 29" long and 8-1/4" wide overall. The table surface is precisely machined to be flat and smooth. The JET 8" Jointer/Planer is capable of a maximum cut depth of 1/8" with the cut adjusted using a single knob at the end of the infeed table. A handy cut depth gauge is provided at the front edge of the infeed table. The infeed table is locked in position with a pair of finger-operated knobs. The extruded aluminum fence is 4-1/8" tall and 21" long. The fence can be used at 90- degrees to the table surface for squaring stock or it can be tilted up to 45-degrees (right) for bevel cuts. The fence is locked in place with an easy-to-use handle on the rear.

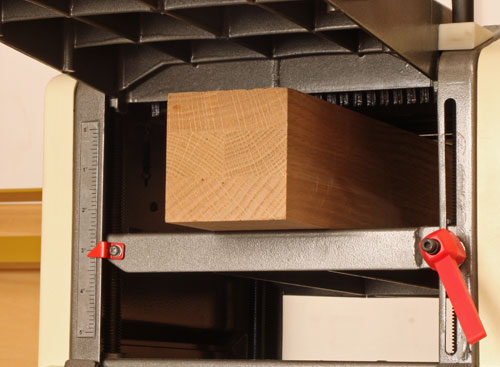

Planer Table
Despite its overall size, the JET 10” Jointer/Planer has a very useful capacity range that will handle the needs of even active home woodworking shops.
The planer table surface is 17-1/2" long (with the included extension table) by 8-1/2" wide. The table is raised and lowered with a hand crank that plugs into the top of the JET 8" Jointer/Planer. A handy scale next to the planer infeed opening shows the current table to knife distance and makes setup fast and easy. The planer table moves up and down on four lead screws, one in each corner of the main cabinet for maximum stability. The table is secured for making cuts with a single locking handle.
The JET 8" Jointer/Planer has a maximum planer thickness capacity of 4-1/8", max cut width of 8-1/4" and a maximum cut depth of 5/64". The JET 8" Jointer/Planer will also plane work pieces with a minimum length of 6"! For the best overall performance the JET 8" Jointer/Planer has a fixed feed rate of 19.5 FPM. (feet per minute)
TECHNICAL SPECIFICATIONS:
Style (Type) Planer/Jointer
Number of Knives 2
Cutter Head Type Straight Knives
Standard Knife Size (L x W x T) (In.) 8-1/4 x 13/20 x 3/50
Amps @ 120V 13
Cutterhead Speed (RPM) 9000
Cuts Per Minute 18000
Planer Cutting Capacity (W x D) (In.) 1/5 - 4-18/25
Fence Size (L x H) (In.) 21 x 4-1/8
Fence Tilt (Deg.) 0 - 45
Motor Voltage (V.) 115
Prewired Voltage (V.) 115
Construction Sheet Metal
Cutting Thickness 1/5 to 4-18/25 In.
Cutting Width 8 In.
Depth of Cut 5/64 (Planer), 1/8 (Jointer)
Overall Depth 31"
Overall Height 18.5"
Overall Width 16.5"
Shipping Weight 80 lbs
| SKU | JET-707400 |
|---|---|
| Weight | 80.000000 |
| Manufacturer | JET EQUIPMENT AND TOOL |
