MACHINE STICK/TIG CST-280

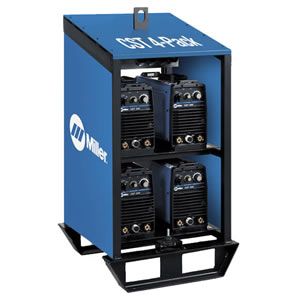

"Miller CST? 280 4-Pack Rack
The Miller CST? 280 4-Pack Rack combines four 280 amp welding arcs in one portable package. The entire rack has one convenient power disconnect with branch fusing and can be moved either by forklift or by using overhead equipment.
The Miller CST-280 is a durable yet lightweight Stick/TIG welding power source designed for the construction industry. The 280 amps of output is ideal for stick electrodes up to 3/16 inch and TIG welding of pipe and plate. Simple to operate with a process selector knob that automatically sets the proper Dig setting for Stick. The small size and weight of the CST 4-pack rack makes it ideal for applications where a high degree of portability is required; such as elevators.
Process ?Stick (SMAW)
?DC TIG (GTAW)
?Air Carbon Arc (CAC-A) thru 5/16"" carbons
Applications
Construction
Turnarounds
Maintenance
Shipbuilding
Rental Fleets
Features
?Arc Performance ? Excellent weld performance is provided in both Stick and TIG. Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
?Simplicity ? Minimum operator controls require no training.
?Adaptive Hot Start? automatically sets optimum starting conditions for stick electrode.
?Process selector switch automatically sets the optimum volt-amp curve and DIG for Stick welding based on electrode type.
?Durability ? Individual power source and rack enclosure designed to meet the needs of field construction.
?Portability ? racks include lift truck fork pockets and lift eye.
?The small size and weight of the 4-pack rack makes it ideal for applications where a high degree of portability is required; such as elevators.
?Common output ground connection (for same polarity use only).
?Meets NEC requirements when properly installed and utilizing recommended primary circuit protection and proper fuse breakers selection for primary power applied to rack.
?Meets IP23S and more stringent IP23M.
?Junction box with fuses for each machine. Equipped with fuses for 460 V operation. Fuses must be ordered separately for 220 ? 230 or 575 V primary power.
?Available with either TWECO style or Dinse (International) style cable receptacles. Please specify above.
?Optional Running Gear available. Large 5-inch-diameter wheels enable the rack to be moved over grating and driveway gravel.
"
The Miller CST? 280 4-Pack Rack combines four 280 amp welding arcs in one portable package. The entire rack has one convenient power disconnect with branch fusing and can be moved either by forklift or by using overhead equipment.
The Miller CST-280 is a durable yet lightweight Stick/TIG welding power source designed for the construction industry. The 280 amps of output is ideal for stick electrodes up to 3/16 inch and TIG welding of pipe and plate. Simple to operate with a process selector knob that automatically sets the proper Dig setting for Stick. The small size and weight of the CST 4-pack rack makes it ideal for applications where a high degree of portability is required; such as elevators.
Process ?Stick (SMAW)
?DC TIG (GTAW)
?Air Carbon Arc (CAC-A) thru 5/16"" carbons
Applications
Construction
Turnarounds
Maintenance
Shipbuilding
Rental Fleets
Features
?Arc Performance ? Excellent weld performance is provided in both Stick and TIG. Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
?Simplicity ? Minimum operator controls require no training.
?Adaptive Hot Start? automatically sets optimum starting conditions for stick electrode.
?Process selector switch automatically sets the optimum volt-amp curve and DIG for Stick welding based on electrode type.
?Durability ? Individual power source and rack enclosure designed to meet the needs of field construction.
?Portability ? racks include lift truck fork pockets and lift eye.
?The small size and weight of the 4-pack rack makes it ideal for applications where a high degree of portability is required; such as elevators.
?Common output ground connection (for same polarity use only).
?Meets NEC requirements when properly installed and utilizing recommended primary circuit protection and proper fuse breakers selection for primary power applied to rack.
?Meets IP23S and more stringent IP23M.
?Junction box with fuses for each machine. Equipped with fuses for 460 V operation. Fuses must be ordered separately for 220 ? 230 or 575 V primary power.
?Available with either TWECO style or Dinse (International) style cable receptacles. Please specify above.
?Optional Running Gear available. Large 5-inch-diameter wheels enable the rack to be moved over grating and driveway gravel.
"
Out of stock
SKU
IFEX-907247
TTD112,500.00
"Miller CST? 280 4-Pack Rack
The Miller CST? 280 4-Pack Rack combines four 280 amp welding arcs in one portable package. The entire rack has one convenient power disconnect with branch fusing and can be moved either by forklift or by using overhead equipment.
The Miller CST-280 is a durable yet lightweight Stick/TIG welding power source designed for the construction industry. The 280 amps of output is ideal for stick electrodes up to 3/16 inch and TIG welding of pipe and plate. Simple to operate with a process selector knob that automatically sets the proper Dig setting for Stick. The small size and weight of the CST 4-pack rack makes it ideal for applications where a high degree of portability is required; such as elevators.
Process ?Stick (SMAW)
?DC TIG (GTAW)
?Air Carbon Arc (CAC-A) thru 5/16"" carbons
Applications
Construction
Turnarounds
Maintenance
Shipbuilding
Rental Fleets
Features
?Arc Performance ? Excellent weld performance is provided in both Stick and TIG. Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
?Simplicity ? Minimum operator controls require no training.
?Adaptive Hot Start? automatically sets optimum starting conditions for stick electrode.
?Process selector switch automatically sets the optimum volt-amp curve and DIG for Stick welding based on electrode type.
?Durability ? Individual power source and rack enclosure designed to meet the needs of field construction.
?Portability ? racks include lift truck fork pockets and lift eye.
?The small size and weight of the 4-pack rack makes it ideal for applications where a high degree of portability is required; such as elevators.
?Common output ground connection (for same polarity use only).
?Meets NEC requirements when properly installed and utilizing recommended primary circuit protection and proper fuse breakers selection for primary power applied to rack.
?Meets IP23S and more stringent IP23M.
?Junction box with fuses for each machine. Equipped with fuses for 460 V operation. Fuses must be ordered separately for 220 ? 230 or 575 V primary power.
?Available with either TWECO style or Dinse (International) style cable receptacles. Please specify above.
?Optional Running Gear available. Large 5-inch-diameter wheels enable the rack to be moved over grating and driveway gravel.
"
The Miller CST? 280 4-Pack Rack combines four 280 amp welding arcs in one portable package. The entire rack has one convenient power disconnect with branch fusing and can be moved either by forklift or by using overhead equipment.
The Miller CST-280 is a durable yet lightweight Stick/TIG welding power source designed for the construction industry. The 280 amps of output is ideal for stick electrodes up to 3/16 inch and TIG welding of pipe and plate. Simple to operate with a process selector knob that automatically sets the proper Dig setting for Stick. The small size and weight of the CST 4-pack rack makes it ideal for applications where a high degree of portability is required; such as elevators.
Process ?Stick (SMAW)
?DC TIG (GTAW)
?Air Carbon Arc (CAC-A) thru 5/16"" carbons
Applications
Construction
Turnarounds
Maintenance
Shipbuilding
Rental Fleets
Features
?Arc Performance ? Excellent weld performance is provided in both Stick and TIG. Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
?Simplicity ? Minimum operator controls require no training.
?Adaptive Hot Start? automatically sets optimum starting conditions for stick electrode.
?Process selector switch automatically sets the optimum volt-amp curve and DIG for Stick welding based on electrode type.
?Durability ? Individual power source and rack enclosure designed to meet the needs of field construction.
?Portability ? racks include lift truck fork pockets and lift eye.
?The small size and weight of the 4-pack rack makes it ideal for applications where a high degree of portability is required; such as elevators.
?Common output ground connection (for same polarity use only).
?Meets NEC requirements when properly installed and utilizing recommended primary circuit protection and proper fuse breakers selection for primary power applied to rack.
?Meets IP23S and more stringent IP23M.
?Junction box with fuses for each machine. Equipped with fuses for 460 V operation. Fuses must be ordered separately for 220 ? 230 or 575 V primary power.
?Available with either TWECO style or Dinse (International) style cable receptacles. Please specify above.
?Optional Running Gear available. Large 5-inch-diameter wheels enable the rack to be moved over grating and driveway gravel.
"
| SKU | IFEX-907247 |
|---|---|
| Weight | 1.000000 |
