PLAN ARC AC225 220V 1PHAZ
PRODUCT FEATURES
Easy to install - Comes with attached 6 ft. (1.8m) input power cable and NEMA 6-50P plug.
Easy to operate - Full range 40-225 amp selector switch quickly sets the welding current and ensures a uniform arc each and every time You weld.
Smooth arc - Makes it easy to weld with different electrodes, including mild steel, low hydrogen, stainless steel and hardfacing electrodes.
225 amp AC output - Is enough for 3/16"" (4.8mm) diameter general purpose mild steel electrodes and 5/32"" (4.0mm) sizes of other electrodes.
NEMA rated, UL listed and ULCSA approved.
Easy to install - Comes with attached 6 ft. (1.8m) input power cable and NEMA 6-50P plug.
Easy to operate - Full range 40-225 amp selector switch quickly sets the welding current and ensures a uniform arc each and every time You weld.
Smooth arc - Makes it easy to weld with different electrodes, including mild steel, low hydrogen, stainless steel and hardfacing electrodes.
225 amp AC output - Is enough for 3/16"" (4.8mm) diameter general purpose mild steel electrodes and 5/32"" (4.0mm) sizes of other electrodes.
NEMA rated, UL listed and ULCSA approved.
In stock
Only 2 left
SKU
LCN-K1170
TTD4,649.00
Attachments (1)
INCLUDES
(1) Insulated Electrode Holder and Cable
(1) Heavy Duty Work Clamp and Cable
(1) Input Cable with Attached Plug
PRODUCT DESCRIPTION

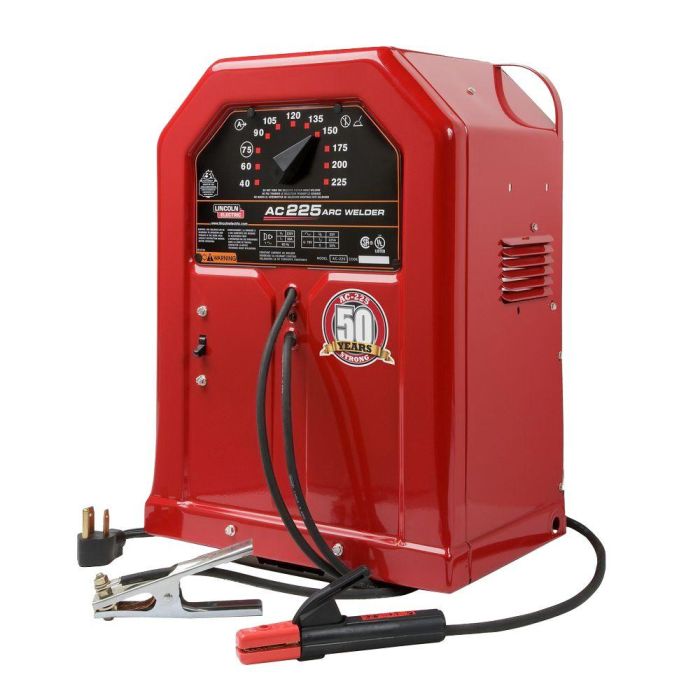

The AC225 compact stick welder produces an extremely smooth AC arc for welding a wide variety of materials including carbon, low alloy, and stainless steels as well as cast iron.
TECHNICAL SPECIFICATIONS
Machine Inputs & Outputs
Phase 1: Input Voltage #1 (Voltage/Phase/Hertz): 230/1/60
Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle): 225A/25V/20%
Product Weights & Dimensions
Dimensions (H x W x D): 24 in x 17.25 in x 12 in (610 mm x 438 mm x 305 mm)
Item Weight: 96lbs
Machines
Machines Processes: Stick (SMAW)
Max Rating: 225
Stick Welders
Safety Listing CSA (Y/N): Yes
Safety Listing UL (Y/N): Yes
Work Clamp Include (Y/N): Yes
Basic Specification
Input Voltage: 230
Input Current: 50A
Input Hertz: 60
Input Power: 230/1/60
Input Phase: 1
Output Range: 40-225A
Polarity: AC
Rated Output: 225A/25V/20%
Application
Typical Application: Maintenance & Repair Repair Welding
Shipping Weight: 98lbs
(1) Insulated Electrode Holder and Cable
(1) Heavy Duty Work Clamp and Cable
(1) Input Cable with Attached Plug
PRODUCT DESCRIPTION
The AC225 compact stick welder produces an extremely smooth AC arc for welding a wide variety of materials including carbon, low alloy, and stainless steels as well as cast iron.
TECHNICAL SPECIFICATIONS
Machine Inputs & Outputs
Phase 1: Input Voltage #1 (Voltage/Phase/Hertz): 230/1/60
Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle): 225A/25V/20%
Product Weights & Dimensions
Dimensions (H x W x D): 24 in x 17.25 in x 12 in (610 mm x 438 mm x 305 mm)
Item Weight: 96lbs
Machines
Machines Processes: Stick (SMAW)
Max Rating: 225
Stick Welders
Safety Listing CSA (Y/N): Yes
Safety Listing UL (Y/N): Yes
Work Clamp Include (Y/N): Yes
Basic Specification
Input Voltage: 230
Input Current: 50A
Input Hertz: 60
Input Power: 230/1/60
Input Phase: 1
Output Range: 40-225A
Polarity: AC
Rated Output: 225A/25V/20%
Application
Typical Application: Maintenance & Repair Repair Welding
Shipping Weight: 98lbs
| SKU | LCN-K1170 |
|---|---|
| Weight | 113.000000 |
| Manufacturer | LINCOLN ELECTRIC |
