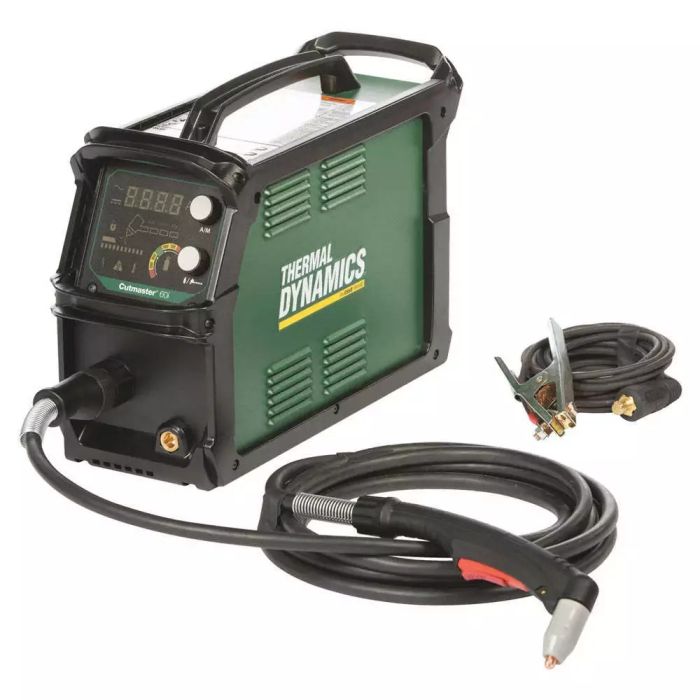

PLASMA CUTMASTER 60I 20'
PRODUCT FEATURES
Built for portability and durability with the integral multi-handle design, available in either a 1 phase or 3 phase unit
50% Duty Cycle at 60A with automatic multi-voltage detection from 208-480V
Industrial SL60QD 1Torch quick disconnect with ATC® (Advanced Torch Connector) allowing selective replacement of either the torch handle assembly or the torch leads, using the patented SureLok® technology
Up to 3/4 in. (20 mm) recommended cut capacity with maximum sever of 1-1/2 in. (38 mm) and 3/4 in. (20 mm) pierce capability
High-visibility, oversized display with gas optimizer technology and consumables end-of-life indicator, makes setup and usage simple and productive
Cutmaster Black Series electrode included for up to 60% longer life of consumable parts
Built for portability and durability with the integral multi-handle design, available in either a 1 phase or 3 phase unit
50% Duty Cycle at 60A with automatic multi-voltage detection from 208-480V
Industrial SL60QD 1Torch quick disconnect with ATC® (Advanced Torch Connector) allowing selective replacement of either the torch handle assembly or the torch leads, using the patented SureLok® technology
Up to 3/4 in. (20 mm) recommended cut capacity with maximum sever of 1-1/2 in. (38 mm) and 3/4 in. (20 mm) pierce capability
High-visibility, oversized display with gas optimizer technology and consumables end-of-life indicator, makes setup and usage simple and productive
Cutmaster Black Series electrode included for up to 60% longer life of consumable parts
In stock
Only 2 left
SKU
VIC-1-5630-1
TTD18,599.95
Attachments (1)
INCLUDES
(1) Thermal Dynamics Cutmaster 60i #1-5630-1X 20' Torch
(1) Cutmaster 60i 208-480V plasma cutter
(1) 20 ft., SL60QD 1Torch
(1) Full set of 60A consumables, including 2 60A cutting tips, 3 drag tips, and a gouging tip
(1) Spare parts kit
(1) Work lead with ground clamp
(1) Operator's manual and quick start guide
PRODUCT DESCRIPTION
The Cutmaster® 60i with SL60QD™ 1Torch® is the perfect combination of end-user insight, advanced technology, and intelligent design. Packed with power and offering the highest power-to-weight ratio in its class, the Cutmaster 60i with SL60QD 1Torch also has best in class cutting arc length and the most empowering and engaging user experience no matter the application. Cutmaster MechPak is also available for easy integration into semi-automatic cutting processes.
Applications
Agricultural Equipment
Automotive Bodies
Civil Construction
General Manufacturing
HVAC
Repair and Maintenance
TECHNICAL SPECIFICATIONS
Output Power: 15 (full output) kW
Open Circuit VDC High: 300 VDC
Input Ratings: 280-480 VAC, 1 or 3 ph, 50/60 Hz
Duty Cycle: 50 A @ 60 % duty cycle, 60 A @ 50 % duty cycle, 40 A @ 100 % duty cycle
Gas Requirements: Compressed Air
Gas Pressure: 6.2-8.6 bar
Gas Flow: 142-235 l/min
Severs Manual: 38 mm
Pierces: 20 mm
Torch Air Pressure: 1 kg/cm² ( 1 psig )
Torch Air Consumption: 1 l/min ( 1 cfh )
Dimensions, L x W x H: 536 x 199 x 593 mm
Item Weight: 37.04lbs 16.8 Kg
Plate Thickness: 6 mm, 13 mm, 16 mm, 19 mm, 25 mm, 32 mm, 38 mm
Recommended Cut Speed: 2030 mm/min, 660 mm/min, 480 mm/min, 360 mm/min, 150 mm/min, 110 mm/min, 110 mm/min,
Recommended Cut: 20 mm
Shipping Weight: 40lbs
(1) Thermal Dynamics Cutmaster 60i #1-5630-1X 20' Torch
(1) Cutmaster 60i 208-480V plasma cutter
(1) 20 ft., SL60QD 1Torch
(1) Full set of 60A consumables, including 2 60A cutting tips, 3 drag tips, and a gouging tip
(1) Spare parts kit
(1) Work lead with ground clamp
(1) Operator's manual and quick start guide
PRODUCT DESCRIPTION
The Cutmaster® 60i with SL60QD™ 1Torch® is the perfect combination of end-user insight, advanced technology, and intelligent design. Packed with power and offering the highest power-to-weight ratio in its class, the Cutmaster 60i with SL60QD 1Torch also has best in class cutting arc length and the most empowering and engaging user experience no matter the application. Cutmaster MechPak is also available for easy integration into semi-automatic cutting processes.
Applications
Agricultural Equipment
Automotive Bodies
Civil Construction
General Manufacturing
HVAC
Repair and Maintenance
TECHNICAL SPECIFICATIONS
Output Power: 15 (full output) kW
Open Circuit VDC High: 300 VDC
Input Ratings: 280-480 VAC, 1 or 3 ph, 50/60 Hz
Duty Cycle: 50 A @ 60 % duty cycle, 60 A @ 50 % duty cycle, 40 A @ 100 % duty cycle
Gas Requirements: Compressed Air
Gas Pressure: 6.2-8.6 bar
Gas Flow: 142-235 l/min
Severs Manual: 38 mm
Pierces: 20 mm
Torch Air Pressure: 1 kg/cm² ( 1 psig )
Torch Air Consumption: 1 l/min ( 1 cfh )
Dimensions, L x W x H: 536 x 199 x 593 mm
Item Weight: 37.04lbs 16.8 Kg
Plate Thickness: 6 mm, 13 mm, 16 mm, 19 mm, 25 mm, 32 mm, 38 mm
Recommended Cut Speed: 2030 mm/min, 660 mm/min, 480 mm/min, 360 mm/min, 150 mm/min, 110 mm/min, 110 mm/min,
Recommended Cut: 20 mm
Shipping Weight: 40lbs
| SKU | VIC-1-5630-1 |
|---|---|
| Weight | 37.000000 |
| Manufacturer | VICTOR TECHNOLOGIES |
