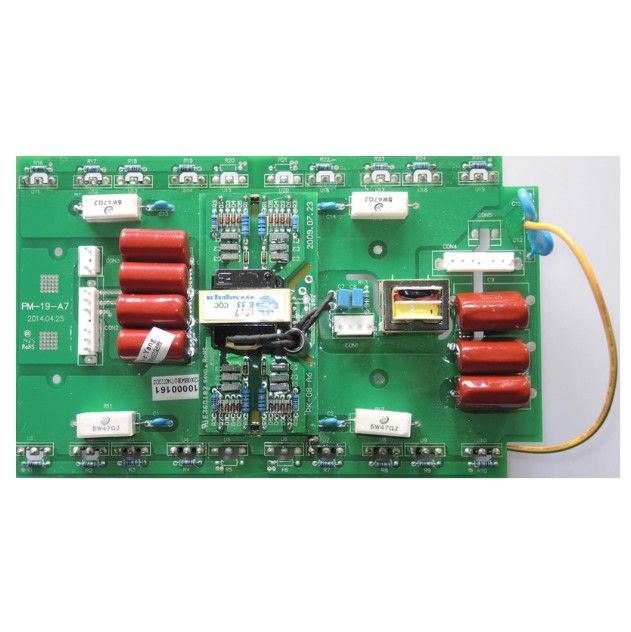

BOARD TIG200 DIGITAL
PRODUCT FEATURES:
Genuine OEM replacement primary inverter main board.
Designed for JASIC TIG200 Digital AC/DC welders with PFC.
Incorporates Power Factor Correction (PFC) circuitry for improved efficiency.
Converts input AC power for the inverter welding system.
Supports stable TIG and MMA welding performance.
Works with the secondary inverter board and rectifier board.
High-current PCB assembly designed for inverter welding equipment.
Helps maintain machine protection and power regulation.
Manufactured to original JASIC specifications.
Suitable for professional repair and maintenance applications.
In stock
Only 10 left
SKU
RZ-51000858
INCLUDES:
[1] Primary Inverter Main Board
PRODUCT DESCRIPTION:
The JASIC RZ-51000858 is a genuine OEM Primary Inverter Main Board (with Power Factor Correction – PFC) designed for compatible JASIC TIG200 Digital AC/DC inverter welding machines. This board is one of the primary power electronics assemblies within the welder, responsible for converting incoming AC power into the high-frequency DC power required by the inverter system. It works in conjunction with the secondary inverter board, rectifier board, IGBT modules, and control circuitry to deliver stable welding performance, efficient power conversion, and reliable machine protection. JASIC identifies 51000858 as the Primary Inverter Main Board (with PFC) in the spare parts list for TIG200PACDC models equipped with PFC.
SAFETY NOTE:
This board forms part of a high-voltage inverter welding system and should only be installed by qualified personnel. Always disconnect the welding machine from the power source, allow internal capacitors to discharge completely, and follow proper Electrostatic Discharge (ESD) handling procedures before servicing.
TYPICAL APPLICATIONS:
Repair of JASIC TIG200 Digital AC/DC inverter welders.
Industrial welding equipment maintenance.
Service center repair operations.
Preventive maintenance of inverter welding systems.
Refurbishment of professional welding equipment.
Spare parts inventory for welding equipment technicians.
TECHNICAL SPECIFICATIONS:
Brand: JASIC
Item Model Number: RZ-51000858
Product Type: Primary Inverter Main Board / Power PCB
Compatible Equipment: JASIC TIG200 Digital AC/DC [PDC models]
Board Type: Primary Inverter Main Board
Technology: Inverter Welding with Power Factor Correction [PFC]
Welding Processes: AC, TIG, DC TIG, Pluse TIG, MMA
Function: Primary Power Conversion and inverter Control
Installation Type: Internal Replacement Component
Material: Electronic PCB with High Power Semiconductor Components
Condition: OEM Replacement Part
Shipping Weight: 1.8 lbs
| SKU | RZ-51000858 |
|---|---|
| Weight | 1.800000 |
| Manufacturer | JASIC TECHNOLOGIES |
