BEARING FYTB, SKF
PRODUCT FEATURES
Medium Duty
Heavy Duty
Medium Duty
Heavy Duty
In stock
Only 3 left
SKU
NORC-0310004967
TTD679.01
INCLUDES
(1) LK UCFL204 Flange Mount Bearing
PRODUCT DESCRIPTION

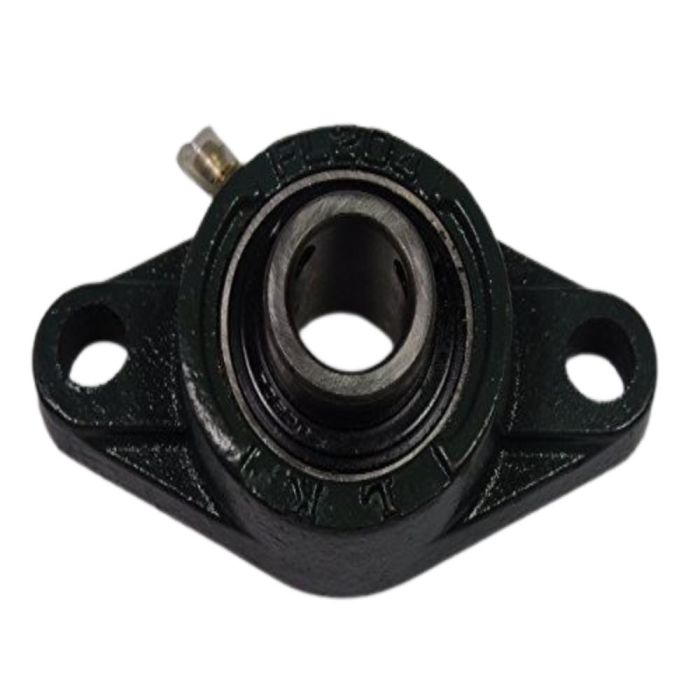

LK UCFL204 Flange Mount Bearing For 20mm shaft.
TECHNICAL SPECIFICATIONS
Item Weight: 1.06lbs
Usage/Application: Industrial
Material: Cast Iron
Brand: LK
Housing Width (b): 60.000 MM
Mounting Hole Center-to-Center (e): 90.000 MM
Housing Length (a): 113.000 MM
Static Load Rating (Cor): 6,668 N
Dynamic Load Rating (Cr): 12,843 N
Packaging Type: Box
Shaft Dia., Nominal (d): 20.000 mm
Flange Height (l): 25.400 mm
Model Name/Number: UCFL204
Shipping Weight: 2lbs
(1) LK UCFL204 Flange Mount Bearing
PRODUCT DESCRIPTION
LK UCFL204 Flange Mount Bearing For 20mm shaft.
TECHNICAL SPECIFICATIONS
Item Weight: 1.06lbs
Usage/Application: Industrial
Material: Cast Iron
Brand: LK
Housing Width (b): 60.000 MM
Mounting Hole Center-to-Center (e): 90.000 MM
Housing Length (a): 113.000 MM
Static Load Rating (Cor): 6,668 N
Dynamic Load Rating (Cr): 12,843 N
Packaging Type: Box
Shaft Dia., Nominal (d): 20.000 mm
Flange Height (l): 25.400 mm
Model Name/Number: UCFL204
Shipping Weight: 2lbs
| SKU | NORC-0310004967 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | LK |
