ARMATURE 120V MIL-16-30-0015

PRODUCT DESCRIPTION:

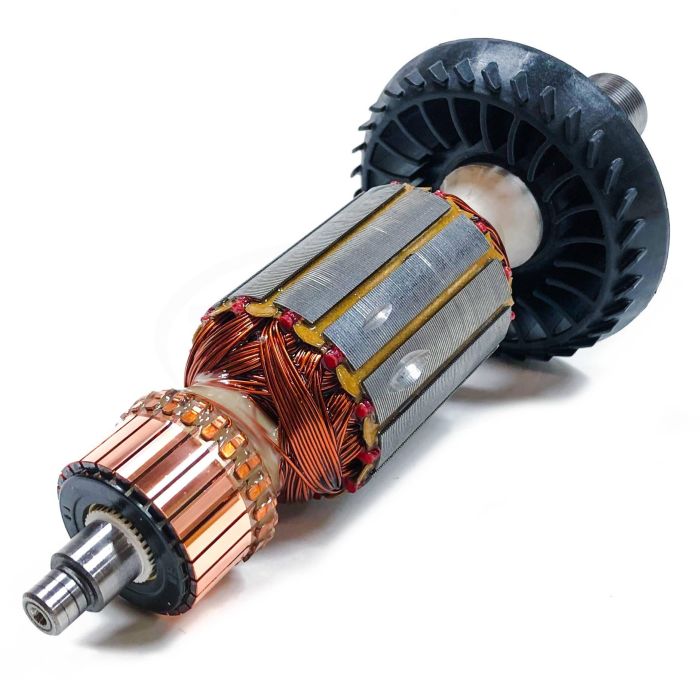

The Milwaukee 16-30-0015 is a genuine OEM armature assembly designed for use with Milwaukee 120V power tools, particularly their M18 series compact hammer drills. This armature is integral to the motor's function, converting electrical energy into mechanical motion to drive the tool's operation.

INSTALLATION TIPS:

Replacing the armature involves disassembling the tool housing, removing the old armature, and installing the new one. It's recommended to also replace the carbon brushes during this process to ensure optimal performance. Using a T10 Torx screwdriver can facilitate the disassembly. Handle the armature fan carefully during removal to avoid damage.

MATERIAL COMPOSITION:

COPPER: Used in the windings for efficient electrical conductivity.

STEEL: Provides structural strength to the armature.

PLASTIC: Utilized in components like the fan and housing for insulation and weight reduction.

KEY COMPONENTS:

ARMATURE: The central rotating part that interacts with the stator to produce motion.

FAN: Attached to the armature, it helps in cooling the motor during operation.

BEARINGS: Support the armature's rotation, ensuring smooth operation.

COMMUTATOR END BEARING: Facilitates the transfer of electrical current to the armature windings.

COMPATIBILITY:

The 16-30-0015 armature is compatible with several Milwaukee models, including:

Milwaukee 2602-20 (M18 1/2" Compact Hammer Drill)

Milwaukee 2602-22DC (M18 1/2" Compact Hammer Drill Kit)

Milwaukee 2602-22 (M18 1/2" Compact Hammer Drill Kit)

Milwaukee 2602-059 (M18 1/2" Compact Hammer Drill)

TECHNICAL SPECIFICATIONS:

Brand: Milwaukee

Item Part Number: 16-30-0015

Application: Replacement armature for various Milwaukee power tools

Voltage: 120V

Shipping Weight: 1 lbs
