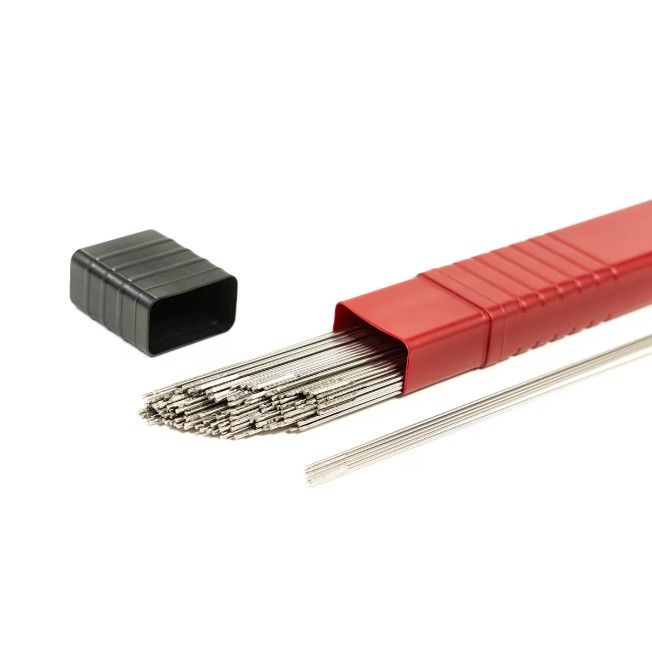

ROD TIG ER309L 1/16"X36"
PRODUCT FEATURES:
ER309L stainless steel TIG welding rod for GTAW applications
1/16″ diameter × 36″ length for precision welding work
Designed for welding dissimilar metals
Low carbon content reduces carbide precipitation and corrosion
Ideal for overlay cladding and buffer layers
Provides good strength and toughness across temperature ranges
Produces clean welds with good finish quality
Conforms to AWS A5.9 / ER309L classification
Suitable for heat-treated joints and corrosion-resistant applications
In stock
Only 50 left
SKU
OX-309L116X36
TTD69.00
PRODUCT DESCRIPTION:
The Oxford Alloy OX-309L116X36 is a premium ER309L stainless steel TIG welding rod designed for joining dissimilar metals such as stainless steel and carbon steel. With its low carbon composition, it minimizes the risk of intergranular corrosion while maintaining excellent weld strength and durability. Measuring 1/16″ in diameter and 36″ in length, this rod is ideal for precise welding, overlay work, and buffer layers in demanding industrial and fabrication applications.
CHEMICAL COMPOSITION:
C: 0.03 max
CR: 23.0 - 25.0
Ni: 12.0 - 14.0
Mo: 0.75 max
Mn: 1.0 - 2.5
Si: 0.30 - 0.65
P: 0.03 max
S: 0.03 max
Cu: 0.75 max
MECHANICAL PROPERTIES:
TYPICAL RESULTS - AS WELDED:
Tensile Strength MPa (ksi): 590 (86)
Yield Strength MPs (ksi): 400 (58)
Elongation %: 40
TECHNICAL SPECIFICATIONS:
Brand: OXFORD ALLOY
Item Model Number: OXF309L1-16X36
Product Type: TIG Welding Rod
AWS Classifications: ER309L
Diameter: 1/16"
Length: 36"
Material: Stainless Steel
Welding Process: GTAW
Application: Dissimilar metal welding, Cladding, Overlay
Carbon Content: ≤ 0.03%
Shipping Weight: 1 lb
| SKU | OX-309L116X36 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | OXFORD ALLOY |
