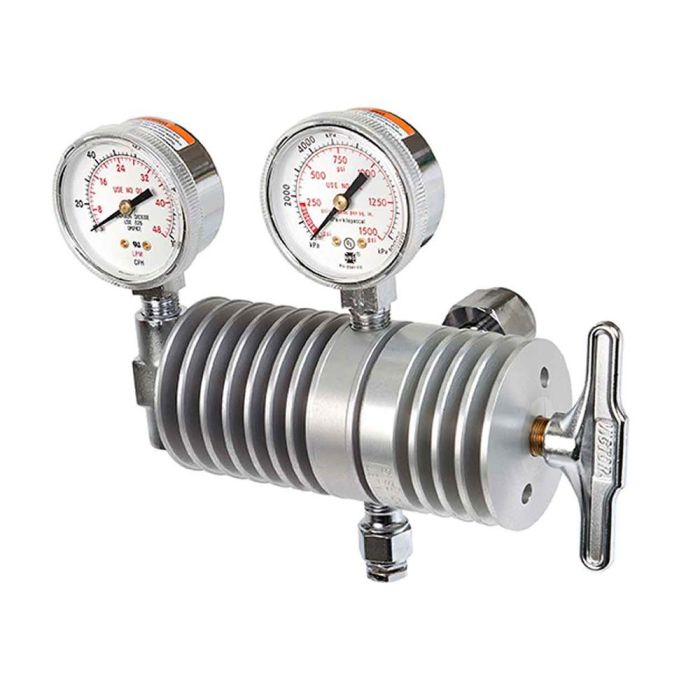

REGULATOR CO2 SR 312-320
The SR311-320 CO2 Flowmeter adjustable pressure gauge is specifically designed for use with standard (non-siphoned) carbon dioxide cylinders. Our unique design incorporates aluminum heat sink fins which permit high flow rates without freeze-up.
Victor SR 312 Series High Capacity Carbon Dioxide Flowgauge Regulator offers 0 - 100 PSIG delivery range and is ideal for core wire applications for delivering high performance. Regulator with maximum inlet pressure of 1500 PSIG features a machined body with housing cap and has 2" brass gauges with 1 3/4" fabric reinforced neoprene diaphragm. Regulator comes with 320 CGA inlet connection having sintered filter and 5/8"-18 RH(F) outlet connections for giving long lasting service. Regulator has a self-reseating relief valve and a stem type seat mechanism. Uniquely designed regulator also features an adjustable pressure gauge with aluminum heat sink fins that enables high flow rates without freeze up or noticeable change in pressure or flow. Regulator should be used with flow meter when backpressure exceeds 2 PSIG.
Features
Designed for CO2 application (non-siphoned tube cylinders)
High flow CO2 applications (SR 310 100 PSIG) (SR 311/312 100 SCFH) with adequate supply or source
Designed for core wire applications
Machined aluminum body & housing cap
2" (50.8 mm) gauge
Stem type seat mechanism
1.75" (44.5 mm) diaphragm - fabric reinforced neoprene
Self reseating relief valve (not designed to protect downstream equipment)
Sintered inlet filter - bronze
A regulator equipped with a flow gauge is not accurate when a back pressure in excess of 2 PSIG exists at the outlet. Back pressure is caused by a restriction in the equipment downstream of the flow gauge. Metering valves; kinked hoses or even very long hoses are restrictions that can cause back pressure. In applications where back pressure in excess of 2 PSIG can be expected; a regulator equipped with a flow meter should be used. WARNING: High gas withdrawal rates may cause regulator freeze up and will require cylinder manifolding. Consult your gas supplier
Industries
Industrial and General Fabrication
Light Fabrication
Repair and Maintenance
Structural Steel Fabrication Product Attributes
Regulator Type
» Flowmeter Regulator
Workload
» High Capacity
Gas Service
» Carbon Dioxide
Inlet Connection
» CGA-320
Outlet Connection
» 5/8" - 18 UNF (RH Female)
Delivery Rate
» 0 - 100 scfh
Gauge Diameter
» 2 in
Victor SR 312 Series High Capacity Carbon Dioxide Flowgauge Regulator offers 0 - 100 PSIG delivery range and is ideal for core wire applications for delivering high performance. Regulator with maximum inlet pressure of 1500 PSIG features a machined body with housing cap and has 2" brass gauges with 1 3/4" fabric reinforced neoprene diaphragm. Regulator comes with 320 CGA inlet connection having sintered filter and 5/8"-18 RH(F) outlet connections for giving long lasting service. Regulator has a self-reseating relief valve and a stem type seat mechanism. Uniquely designed regulator also features an adjustable pressure gauge with aluminum heat sink fins that enables high flow rates without freeze up or noticeable change in pressure or flow. Regulator should be used with flow meter when backpressure exceeds 2 PSIG.
Features
Designed for CO2 application (non-siphoned tube cylinders)
High flow CO2 applications (SR 310 100 PSIG) (SR 311/312 100 SCFH) with adequate supply or source
Designed for core wire applications
Machined aluminum body & housing cap
2" (50.8 mm) gauge
Stem type seat mechanism
1.75" (44.5 mm) diaphragm - fabric reinforced neoprene
Self reseating relief valve (not designed to protect downstream equipment)
Sintered inlet filter - bronze
A regulator equipped with a flow gauge is not accurate when a back pressure in excess of 2 PSIG exists at the outlet. Back pressure is caused by a restriction in the equipment downstream of the flow gauge. Metering valves; kinked hoses or even very long hoses are restrictions that can cause back pressure. In applications where back pressure in excess of 2 PSIG can be expected; a regulator equipped with a flow meter should be used. WARNING: High gas withdrawal rates may cause regulator freeze up and will require cylinder manifolding. Consult your gas supplier
Industries
Industrial and General Fabrication
Light Fabrication
Repair and Maintenance
Structural Steel Fabrication Product Attributes
Regulator Type
» Flowmeter Regulator
Workload
» High Capacity
Gas Service
» Carbon Dioxide
Inlet Connection
» CGA-320
Outlet Connection
» 5/8" - 18 UNF (RH Female)
Delivery Rate
» 0 - 100 scfh
Gauge Diameter
» 2 in
Out of stock
SKU
VIC-0781-0354A
TTD3,093.75
The SR311-320 CO2 Flowmeter adjustable pressure gauge is specifically designed for use with standard (non-siphoned) carbon dioxide cylinders. Our unique design incorporates aluminum heat sink fins which permit high flow rates without freeze-up.
Victor SR 312 Series High Capacity Carbon Dioxide Flowgauge Regulator offers 0 - 100 PSIG delivery range and is ideal for core wire applications for delivering high performance. Regulator with maximum inlet pressure of 1500 PSIG features a machined body with housing cap and has 2" brass gauges with 1 3/4" fabric reinforced neoprene diaphragm. Regulator comes with 320 CGA inlet connection having sintered filter and 5/8"-18 RH(F) outlet connections for giving long lasting service. Regulator has a self-reseating relief valve and a stem type seat mechanism. Uniquely designed regulator also features an adjustable pressure gauge with aluminum heat sink fins that enables high flow rates without freeze up or noticeable change in pressure or flow. Regulator should be used with flow meter when backpressure exceeds 2 PSIG.
Features
Designed for CO2 application (non-siphoned tube cylinders)
High flow CO2 applications (SR 310 100 PSIG) (SR 311/312 100 SCFH) with adequate supply or source
Designed for core wire applications
Machined aluminum body & housing cap
2" (50.8 mm) gauge
Stem type seat mechanism
1.75" (44.5 mm) diaphragm - fabric reinforced neoprene
Self reseating relief valve (not designed to protect downstream equipment)
Sintered inlet filter - bronze
A regulator equipped with a flow gauge is not accurate when a back pressure in excess of 2 PSIG exists at the outlet. Back pressure is caused by a restriction in the equipment downstream of the flow gauge. Metering valves; kinked hoses or even very long hoses are restrictions that can cause back pressure. In applications where back pressure in excess of 2 PSIG can be expected; a regulator equipped with a flow meter should be used. WARNING: High gas withdrawal rates may cause regulator freeze up and will require cylinder manifolding. Consult your gas supplier
Industries
Industrial and General Fabrication
Light Fabrication
Repair and Maintenance
Structural Steel Fabrication Product Attributes
Regulator Type
» Flowmeter Regulator
Workload
» High Capacity
Gas Service
» Carbon Dioxide
Inlet Connection
» CGA-320
Outlet Connection
» 5/8" - 18 UNF (RH Female)
Delivery Rate
» 0 - 100 scfh
Gauge Diameter
» 2 in
Victor SR 312 Series High Capacity Carbon Dioxide Flowgauge Regulator offers 0 - 100 PSIG delivery range and is ideal for core wire applications for delivering high performance. Regulator with maximum inlet pressure of 1500 PSIG features a machined body with housing cap and has 2" brass gauges with 1 3/4" fabric reinforced neoprene diaphragm. Regulator comes with 320 CGA inlet connection having sintered filter and 5/8"-18 RH(F) outlet connections for giving long lasting service. Regulator has a self-reseating relief valve and a stem type seat mechanism. Uniquely designed regulator also features an adjustable pressure gauge with aluminum heat sink fins that enables high flow rates without freeze up or noticeable change in pressure or flow. Regulator should be used with flow meter when backpressure exceeds 2 PSIG.
Features
Designed for CO2 application (non-siphoned tube cylinders)
High flow CO2 applications (SR 310 100 PSIG) (SR 311/312 100 SCFH) with adequate supply or source
Designed for core wire applications
Machined aluminum body & housing cap
2" (50.8 mm) gauge
Stem type seat mechanism
1.75" (44.5 mm) diaphragm - fabric reinforced neoprene
Self reseating relief valve (not designed to protect downstream equipment)
Sintered inlet filter - bronze
A regulator equipped with a flow gauge is not accurate when a back pressure in excess of 2 PSIG exists at the outlet. Back pressure is caused by a restriction in the equipment downstream of the flow gauge. Metering valves; kinked hoses or even very long hoses are restrictions that can cause back pressure. In applications where back pressure in excess of 2 PSIG can be expected; a regulator equipped with a flow meter should be used. WARNING: High gas withdrawal rates may cause regulator freeze up and will require cylinder manifolding. Consult your gas supplier
Industries
Industrial and General Fabrication
Light Fabrication
Repair and Maintenance
Structural Steel Fabrication Product Attributes
Regulator Type
» Flowmeter Regulator
Workload
» High Capacity
Gas Service
» Carbon Dioxide
Inlet Connection
» CGA-320
Outlet Connection
» 5/8" - 18 UNF (RH Female)
Delivery Rate
» 0 - 100 scfh
Gauge Diameter
» 2 in
| SKU | VIC-0781-0354A |
|---|---|
| Weight | 1.000000 |
| Manufacturer | VICTOR TECHNOLOGIES |
