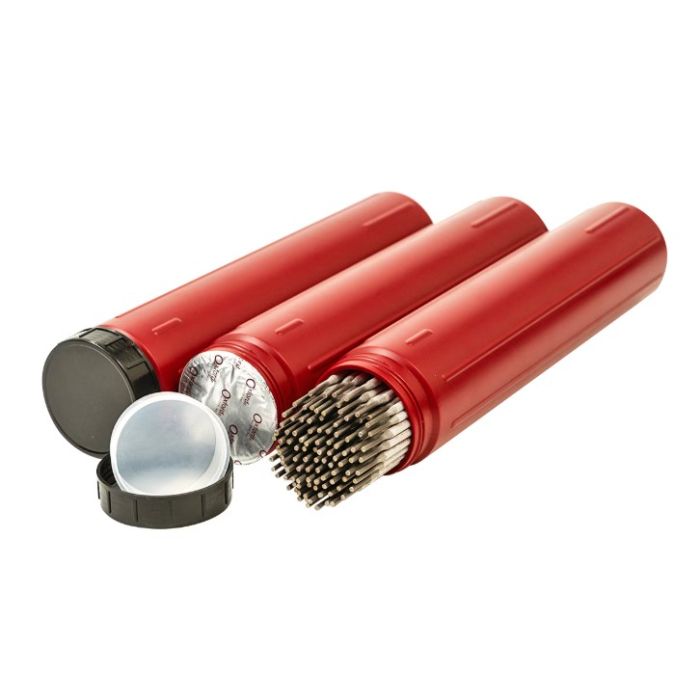

ROD E308/308L-16 3/32"
PRODUCT FEATURES:
E308/E308L-16 stainless steel stick electrode for SMAW
3/32? diameter ideal for thinner materials and precise weld control
Designed for welding 304, 304L and similar stainless steels
Low carbon content minimizes carbide precipitation and corrosion
Operates on AC or DC for versatility
Provides smooth arc stability and easy slag removal
Suitable for all-position welding
Produces clean, aesthetically pleasing weld beads
Hermetically sealed packaging helps maintain electrode quality
In stock
Only 65 left
SKU
OX-308L16332
TTD79.00
PRODUCT DESCRIPTION:
The Oxford Alloy OX-308L16332 is a 3/32? stainless steel stick electrode classified as E308/E308L-16, designed for welding common stainless steels such as 304 and 304L. Its smaller diameter makes it particularly suitable for thinner materials, light fabrication, and detailed welding tasks. With a low carbon formulation, it offers excellent resistance to intergranular corrosion while delivering smooth arc performance and strong, clean welds across a variety of applications.
CHEMICAL COMPOSITION:
C: 0.04 max
Cr: 18.0 - 21.0
Ni: 9.0 - 11.0
Mn: 0.5 - 2.5
Si: 1.0 max
P: 0.04 max
Cu: 0.75 max
Mo: 0.75 max
S: 0.03 max
MECHANICAL PROPERTIES:
TYPICAL RESULTS - AS WELDED:
Tensile Strength MPa (ksi): 540 (78)
Yield Strength MPs (ksi): 390 (57)
Elongation %: 46
AWS REQUIREMENTS:
Tensile Strength MPa (ksi): 520 (75) min
Elongation %: 35 min
TECHNICAL SPECIFICATIONS:
Brand: Oxford Alloy
Item Model Number: OXF308L - 163 - 32
Product Type: Stick Welding Electrode
AWS Classification: E308 / E308L-16
Diameter: 3/32"
Length: 14"
Material: Stainless Steel
Welding Process: SMAW
Current Type: AC / DC
Amperage Range: 60 - 90 A
Carbon Content: ? 0.04%
Shipping Weight: 10 lbs
| SKU | OX-308L16332 |
|---|---|
| Weight | 10.000000 |
