ROD E308/E308L-16 1/8"
PRODUCT FEATURES:
E308/E308L-16 stainless steel stick electrode for SMAW
1/8? diameter suitable for general fabrication and repair work
Designed for welding 304, 304L and similar stainless steels
Low carbon content reduces intergranular corrosion
Works on AC or DC for versatility
Produces smooth, stable arc with good bead appearance
Suitable for all-position welding
Hermetically sealed packaging helps maintain electrode quality
Provides strong, crack-resistant weld deposits
In stock
Only 60 left
SKU
OX-308L1618
TTD79.00
PRODUCT DESCRIPTION:

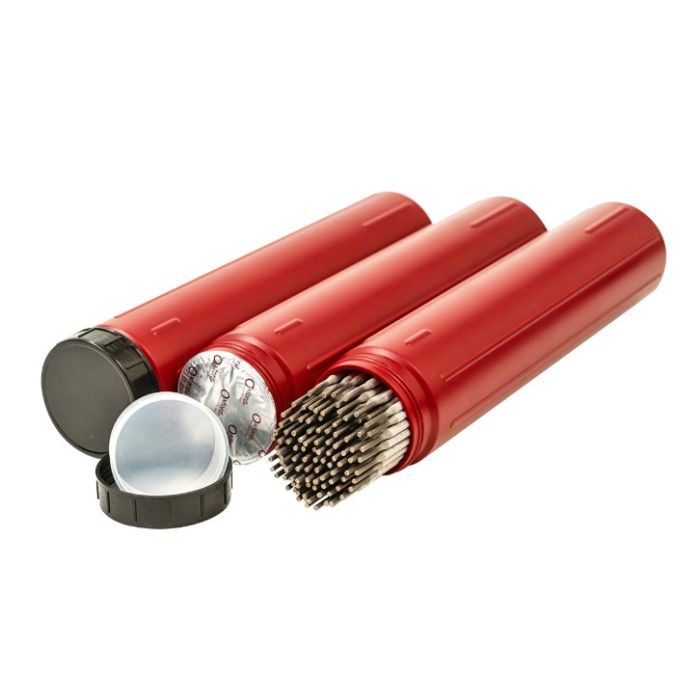

The Oxford Alloy OX-308L1618 is a stainless steel stick welding electrode classified as E308/E308L-16, designed for welding common stainless steels such as 304 and 304L. With its low carbon formulation, it minimizes carbide precipitation and improves resistance to corrosion. This 1/8? electrode offers excellent arc stability and can be used on both AC and DC power sources, making it a versatile choice for fabrication, maintenance, and repair applications in stainless steel environments.
CHEMICAL COMPOSITION:
C: 0.04 max
Cr: 18.0 - 21.0
Ni: 9.0 - 11.0
Mn: 0.5 - 2.5
Si: 1.0 max
P: 0.04 max
Cu: 0.75 max
Mo: 0.75 max
S: 0.03 max
MECHANICAL PROPERTIES:
TYPICAL RESULTS - AS WELDED:
Tensile Strength MPa (ksi): 540 (78)
Yield Strength MPs (ksi): 390 (57)
Elongation %: 46
AWS REQUIREMENTS:
Tensile Strength MPa (ksi): 520 (75) min
Elongation %: 35 min
TECHNICAL SPECIFICATIONS:
Brand: Oxford Alloy
Item Model Number: OXF308L-161-8
Product Type: Stick Welding Electrode
AWS Classification: E308 / E308L - 16
Diameter: 1/8"
Length: 14"
Material: Stainless Steel
Welding Process: SMAW (Stick)
Current Type: AC / DC
Amperage Range: 85 - 110 A (Flat) / 80 - 90 A (Vertical / Overhead)
Shipping Weight: 10 lbs
| SKU | OX-308L1618 |
|---|---|
| Weight | 10.000000 |
