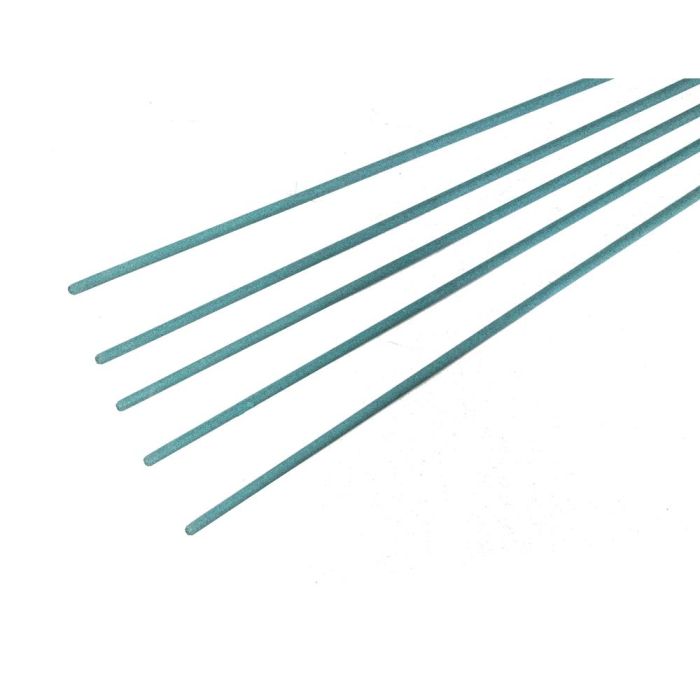

ROD E6013 3/32 X 14 (LB)
Sureweld® 6013 is an all-position electrode. The arc is very stable even when low-voltage open circuit transformers are used
The power of its arc allows depositing quick welds medium penetration and good appearance.
Sureweld® 6013 eliminates the risk of trapping the slag due to its special characteristics and mineral coating
Sureweld® 6013 is used on a wide array of mild steel fabrication where ease of operation and good appearance is required
Sureweld® 6013 is recommended for welding vehicle bodies / profiles / tanks
(1) ESAB Stick Electrode: Carbon Steel, E6013, 3/32 in x 14 in, 5 lb, Sureweld 6013
PRODUCT DESCRIPTION
General-purpose electrode ideally suited for all positional welding except vertical down. Smooth and stable arc giving a flat weld bead with easy slag removal. Recommended for welding of general grade carbon steels.
TECHNICAL SPECIFICATIONS
Brand: ESAB
Manufacturer Part Number: 812000149
Series: Sureweld 6013
Material: Carbon Steel
For Material Type: Carbon Steel to Carbon Steel
AWS Classification: E6013
Welding Current Designation: AC; DCEN; DCEP
For Welding Position: Flat
Horizontal
Overhead
Vertical-Down
Vertical-Up
Overall Diameter: 3/32 in
Overall Length: 14 in
Weight: Sold by pound
Container Type: Plastic Tube
Tensile Strength (Minimum Required):60 ksi
Tensile Strength (As Welded): 81 ksi
Yield Strength (Minimum Required): 48 ksi
Yield Strength (As Welded): 70 ksi
Elongation (Minimum Required): 17 %
Elongation (As Welded): 27%
Standards: AWS A5.1
Process: Stick Welding (SMAW)
UNSPSC: 23171515
Country of Origin: Mexico (subject to change)
| SKU | ES-ES131424CLB |
|---|---|
| Weight | 1.000000 |
| Manufacturer | ESAB |
