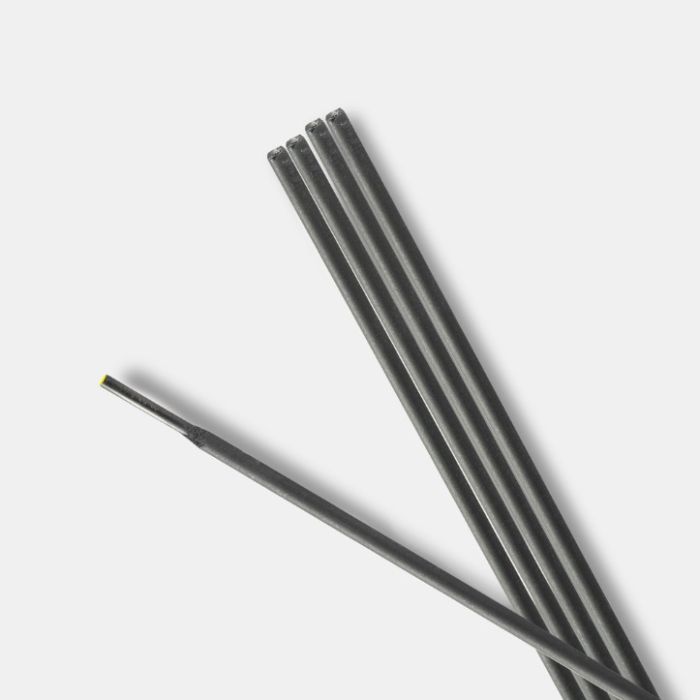

ROD NI99 ENICI 3/32 C/IRN NI99332PC
PRODUCT FEATURES:
Produces very machinable weld metal — easy to grind, mill, tap, or drill post‑weld.
Excellent for cast iron repairs with low cracking risk when used correctly.
Works well with AC and DC+ currents and all welding positions.
Weld deposit color closely matches cast iron, improving appearance.
Can be used to weld cast iron to dissimilar metals like mild or low‑alloy steels
In stock
Only 11 left
SKU
WASH-NI99332PC
TTD9.00
PRODUCT DESCRIPTION:
The Washington Alloy WASH‑NI99332PC ROD NI99 ENi‑CI 3/32″ is a premium high‑nickel stick electrode engineered for the welding and repair of cast iron. Classified to AWS A5.15 ENi‑CI, its composition (approximately 99 % nickel) yields weld deposits that are soft, ductile, and easily machinable, drillable, or tap‑able after welding — ideal for precision repair work where cast iron components must be restored with minimal residual stress. The electrode also delivers a color match close to cast iron surface, making it preferred for visible repairs and joining cast iron to itself or to carbon/low‑alloy steels.
TYPICAL WELD METAL CHEMISTRY (%):
C: 0.055
Si: 0.46
Mn: 0.33
P: 0.017
S: 0.007
Fe: 0.850
Cu: 0.160
Ni: Balance
TYPICAL MECHANICAL PROPERTIES OF WELD METAL (AS WELDED):
Tensile Strength (psi): 50,000
Yield Strength (0.2% offset) (psi): 40,000
Elongation in 2" (%): 3-4%
Brinell Hardness: 170
TECHNICAL SPECIFICATIONS:
Brand: Washington Alloy
Item Model Number: NI99332
Product Type: High Nickel Cast Iron Electrode
AWS / ASME Classification: AWS A5.15 / ASME SFA 5.15 ENi-CI
Diameter: 3/32"
Length: 14"
Welding Positons: Flat, Horizontal, Vertical, Overhead
Current / Polarity: AC, DC+ (DCEP)
Typical Weld Metal Characteristics: Soft, Ductile, High Machinable, Color matches cast iron
Applications: Cast Iron repair, Joining cast iron to cast iron or steel
Shipping Weight: 10 lbs
| SKU | WASH-NI99332PC |
|---|---|
| Weight | 10.000000 |
| Manufacturer | WASHINGTON ALLOY |
