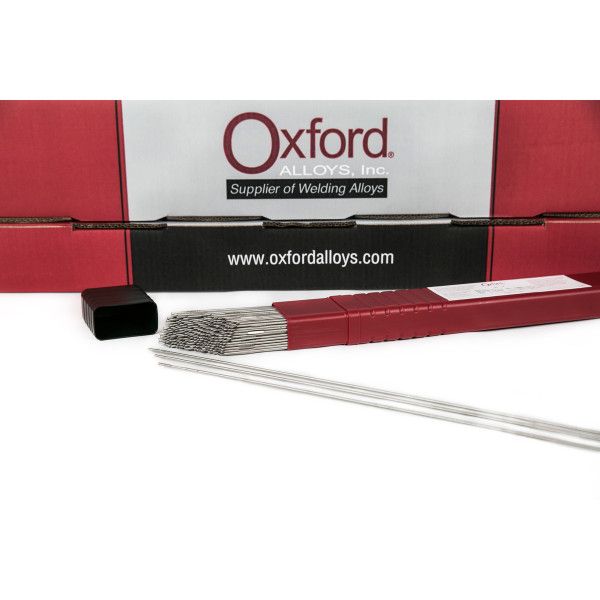

ROD TIG 1/8 ER309/309L SS
PRODUCT FEATURE:
Used for the welding of dissimilar materials between stainless and low alloy steels, as well as for overlay cladding.
This alloy is well suited for austenitic ferritic joints with a maximum application temperature of 300° C. It is al so suited for stainless with wet corrosion up to 350° C.
Also used for depositing buffer layers when welding clad products.
TIG Wire marked with AWS classification
Ultra clean finishing
Certified Material Test Reports on all heats
In stock
Only 33 left
SKU
OAI-ER309L18
TTD139.01
PRODUCT DESCRIPTION:
Oxford Alloys 309LMo TIG Welding Wire is a low-carbon, molybdenum-alloyed filler metal designed for welding dissimilar metals, particularly for overlay cladding and joining stainless steels to carbon or low-alloy steels. The addition of molybdenum enhances its resistance to pitting and crevice corrosion, making it suitable for applications in corrosive environments.
MECHANICAL PROPERTIES:
Tensile Strength: 86,000 psi (593 MPa)
Yield Strength: 57,000 psi (393 MPa)
Elongation: 42%
APPLICATIONS:
Austenitic stainless steels (e.g., 316L) to carbon or low-alloy steels
Overlay cladding of carbon steel with corrosion-resistant stainless steel
Dissimilar metal joints, such as joining ferritic steels to austenitic steels
High-temperature applications requiring enhanced creep resistance
CHEMICAL COMPOSITION:
C: 0.02 MAX
Cr: 23.0 - 25.0
Ni: 12.0 - 14.0
Mo: 2.0 - 3.0
Mn: 1.0 - 2.5
Si: 0.30 - 0.65
P: 0.03 MAX
S: 0.03 MAX
Cu: 0.75 MAX
PACKAGING:
Length: 36"
Weight: 3lbs
Diameter: 1/8"
| SKU | OAI-ER309L18 |
|---|---|
| Weight | 3.000000 |
| Manufacturer | OXFORD ALLOY |
