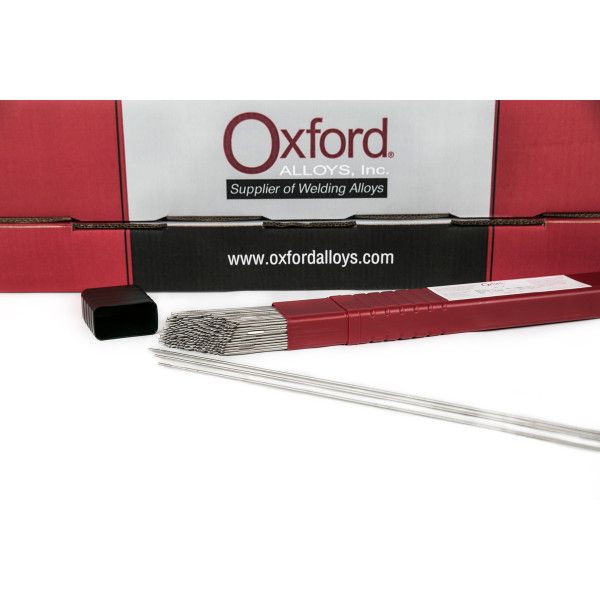

ROD TIG 3/32 347 SS LOCOR
PRODUCT FEATURES:
A columbium-stabilized stainless steel welding wire used to weld Types 321 and 347.
Addition of columbium reduces the possibility of chromium carbide precipitation and consequent intergranular corrosion.
TIG Wire marked with AWS classification
Ultra clean finishing
Certified Material Test Reports on all heats
In stock
Only 179 left
SKU
OAI-ER347332
TTD67.50
PRODUCT DESCRIPTION:
Oxford Alloys 347 TIG Welding Wire is a columbium-stabilized stainless steel filler metal designed for welding Types 321 and 347 stainless steels. The addition of columbium reduces the possibility of chromium carbide precipitation and consequent intergranular corrosion, making it ideal for high-temperature applications.
MECHANICAL PROPERTIES:
Tensile Strength: 90,000 psi (620 MPa)
Yield Strength: 65,000 psi (450 MPa)
Elongation: 41%
WELDING PARAMETERS:
Amperage Range (TIG): 120–175 amps
Voltage: 15–20 volts
Shielding Gas: 100% Argon
Welding Positions: All positions
APPLICATION:
Types 321 and 347 stainless steels
High-temperature applications requiring resistance to intergranular corrosion
Chemical processing equipment
Power generation components
Food processing machinery
CHEMICAL COMPOSITION:
C: 0.08 MAX
Mn: 1.0 - 2.5
Si: 0.30 - 0.65
Cr: 19.0 - 21.5
Ni: 9.0 - 11.0
Mo: 0.75 max
S: 0.03 MAX
P: 0.03 MAX
Cu: 0.75 MAX
Nb+Ta: 10 x C-1.0
PACKAGING:
Diameter: 3/32"
Length: 36"
Weight: 10 lbs
| SKU | OAI-ER347332 |
|---|---|
| Weight | 10.000000 |
| Manufacturer | OXFORD ALLOY |
