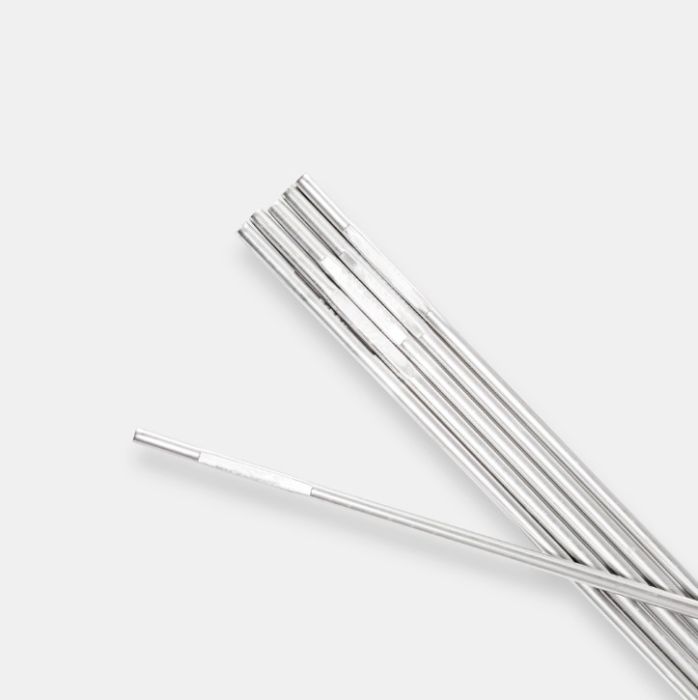

ROD TNSIWL 3/16 M/SS HRDF
PRODUCT FEATURES:
Molybdenum alloyed for enhanced corrosion resistance
Good mechanical strength at elevated temperatures
Produces welds with smooth bead appearance and reliable deposition
Suitable for TIG/GTAW and manual welding processes
3/16″ diameter for general‑purpose applications
High tensile and creep strength due to optimized chemistry
Excellent resistance to pitting and crevice corrosion
In stock
Only 50 left
SKU
WASH-SUPERB316
TTD80.47
PRODUCT DESCRIPTION:
The Washington Alloy WASH‑SUPERB316 ROD TNSIWL 3/16 M/SS HRDF is a molybdenum‑alloyed austenitic stainless steel filler rod designed for GTAW/TIG and manual applications on 316‑grade stainless steels. Engineered for excellent corrosion resistance, good mechanical strength, and reliable high‑temperature performance, this 3/16″ diameter rod is suitable for fabricating and repairing equipment in chemical processing, petrochemical, marine, food processing, and heat exchanger applications where alloys containing chromium, nickel, and molybdenum are required. Its composition promotes resistance to pitting and crevice corrosion in chloride‑bearing environments.
TYPICAL WIRE CHEMISTRY (%):
ER316 / 316L:
C: 0.02
Mn: 1.70
Si: 0.36
Cr: 19.88
Ni: 12.36
Mo: 2.28
TECHNICAL SPECIFICATIONS:
Brand: WASHINGTON ALLOY
Item Model Number: 316 / 315H
Product Type: Stainless Steel Filler Rod
Diameter: 3/16"
Base Alloy: 316/ 316H Stainless Steel
AWS Classifications: Equivalent to AWS A5.4 E316 / 316H
Carbon Content: Up to 0.08%
Yield Strength (as deposited): 60,000 - 65,000 psi
Tensile Strength (as deposited): 85,000 - 90,00 psi
Elongation: 35 - 45%
Corrosion Resistance: Excellent in Chloride and Acidic Environments
Welding Processes: GTAW / TIG, SMAW
Typical Applications: Petrochemical, Food Processing, Marine Equipmetnt
Shielding Gas (GTAW): Argon
Shipping Weight: 1 lb
| SKU | WASH-SUPERB316 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | WASHINGTON ALLOY |
