DRILL ROT 1-3/16"SDS+AVT. 7.5A 3#4J 4500B840R 1050W

INCLUDES

(1) MAKPAC CONNECTOR CASE (TYPE 4)
(1) Depth stop
(1) Side handle

PRODUCT FEATURES

Powerful 7.5 AMP motor delivers 2.9 ft.lbs. of impact energy to handle the most demanding applications

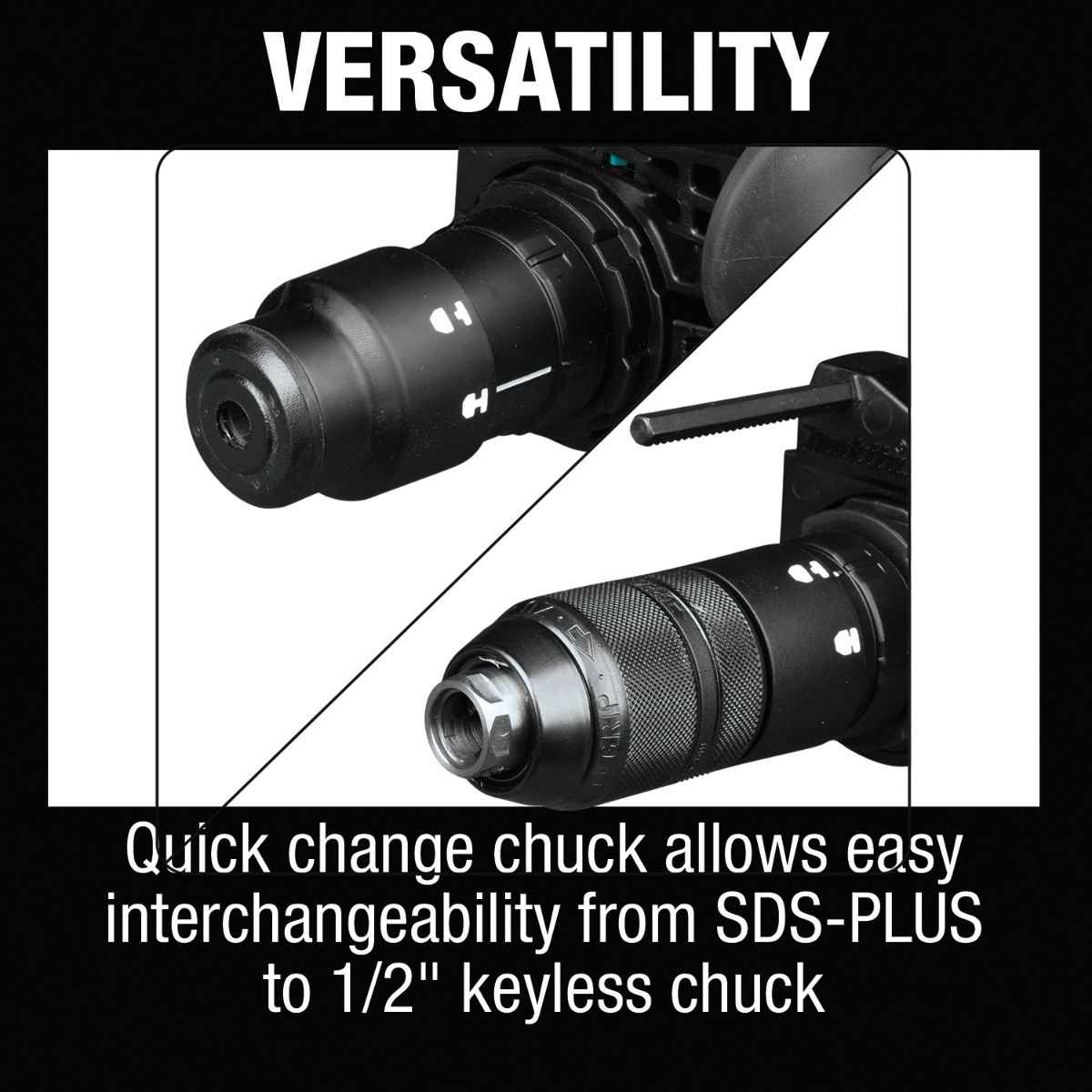

Quick change chuck allows for interchangeability from SDS-PLUS to 1/2" keyless chuck for utilization of straight shank bits
Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
Dust extraction capability with optional OSHA Table 1 compliant On-Board Dust Extractor Attachment
"L-shape" body design brings the operator closer to the application for increased accuracy
Anti-Vibration Technology (AVT®) is an internal counterbalance system along with vibration-absorbing handles that work together to reduce vibration
Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only"
Built-in L.E.D. light with an independent on/off illuminates the work area
Ergonomic rubberized soft-grip handle with large multi-finger trigger provide increased comfort on the job
Variable speed trigger enables user to match the speed to the application for greater versatility
Bit angle settings allow the steel bit to be set at different positions while performing hammer only applications
Recessed hammer function selector for improved durability
Extended life brushes for more work between service intervals and less downtime

PRODUCT DESCRIPTION

The 1-3/16” AVT® Rotary Hammer (HR3012FCJ) is engineered is engineered with Anti-Vibration Technology (AVT®), an internal counterbalance system for significantly less vibration. The HR3012FCJ combines performance and power with less vibration and is ideal for a range of applications.The quick-change chuck allows the user to switch from SDS-PLUS bits to ½” keyless chuck to utilize straight shank bits.

It has a 7.5 AMP motor that delivers 2.6 ft.lbs. of impact energy to handle the most demanding applications. The 3-mode operation offers “rotation only”, “hammering with rotation” or “hammering only” for multiple applications. Modes can be easily changed with a recessed hammer-function selector, which is located below the gear housing for improved durability.

The L-shaped body design brings the operator closer to the application for increased accuracy. A vibration-absorbing back handle and rubberized soft grip provides increased operator comfort.

A torque limiting clutch is engineered to prevent gear damage by automatically disengaging gears if the bit binds. Bit angle settings allow the steel bit to be set at different positions while performing hammer-only applications. This rotary hammer accepts SDS-PLUS bits.

The HR3012FCJ is engineered for a range of applications including overhead drilling into concrete, wood and metal, removing tile, and more. It is ideal for a range of trades including masons, plumbers, electricians, sprinkler installers, city maintenance crews, and general contractors seeking a best-in-class rotary hammer

TECHNICAL SPECIFICATIONS

AMPS : 7.5
WATTS : 1050
Max. Capacity (concrete drilling) : 1-3/16"
Optimum Range (concrete drilling) : 1/4" - 5/8"
Max. Capacity (concrete drilling w/ core bit) : 3-1/8"
Impact Energy (ft.lbs.) : 2.9
Impact Energy (Joules) : 3.9 J
Blows Per Minute (variable speed) : 0 - 4,500 BPM
No Load Speed (variable speed) : 0 - 840 RPM
Vibration Control : Yes
Vibration (m/s²) : 9.5
Overall Length : 14"
Cord Length (ft) : 8.2'
Net Weight : 9.7 lbs.
Bit Type : Accepts SDS-PLUS
Power Type : Corded
Bind-Up Control : No
Shipping Weight : 25 lbs.
