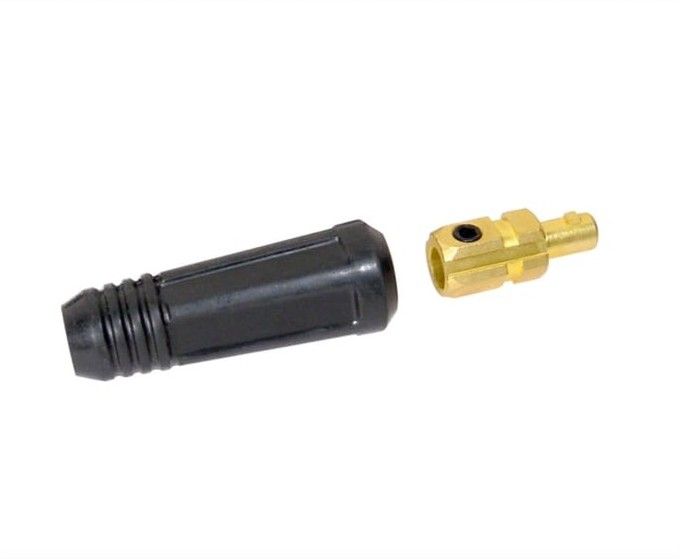

CONNECTOR CBL 10-25M DINS
PRODUCT FEATURES:
Heavy-duty Dinse-type male cable connector designed for welding power cable connections
Compatible with 10–25 mm² welding cable sizes (#8 to #4 AWG)
Twist-lock cam-action connection provides secure and vibration-resistant engagement
Precision-machined brass contacts improve conductivity and current transfer
Heat-, oil-, abrasion-, and solvent-resistant insulated rubber housing
Tapered connector design helps block dirt, oil, and moisture intrusion
Quick-connect system allows fast cable installation and replacement
Suitable for portable inverter welders, TIG, MIG, Stick welding, and plasma cutting systems
Compact Dinse 10-25 style commonly used on light- to medium-duty welding machines
INCLUDES:
(1) Male Dinse Connector Body
In stock
Only 114 left
SKU
TECH-CCD1025M
TTD39.00
PRODUCT DESCRIPTION:
The TECH-CCD1025M Connector Cable 10-25M Dinse is a professional-grade Dinse-style male welding cable connector engineered for secure electrical connections in welding applications. Designed for 10–25 mm² welding cables, this connector features precision-machined brass conductive components and a durable insulated rubber housing that resists heat, oils, abrasion, and workshop contaminants. Its twist-lock cam-action design ensures reliable current transfer and stable arc performance, making it ideal for portable inverter welders, fabrication shops, maintenance operations, and field welding applications.
TECHNICAL SPECIFICATION:
Brand: TECHNIWELD
Item Model Number: CCD1025M
Product Type: Dinse Type Male Welding Cable
Connector Type: Male Dinse Machine Plug
Dinse Size: 10-25 Style
Cable Compatibility: 10–25 mm² (#8 to #4 AWG)
Connection Type: Twist Lock / Cam Action
Material: Precision Machined brass with Insulated Rubber Housing
Amperage Rating: 150 - 200 Amps
Insulation Resistance: Heat, Oil, Abrasion, Ozone and Solvent Resistant
Moisture Protection: Tapered sealing ends help block dirt and moisture
Recommended Applications: TIG, MIG,Stick welding, Plasma cutting, Cable extensions
Compatibility: Dinse-style welding machine and portable inverter welders
Shipping Weight: 1 lbs
| SKU | TECH-CCD1025M |
|---|---|
| Weight | 1.000000 |
| Manufacturer | TECHNIWELD |
