LUGS CABLE COPPER1/0 1/2"

PRODUCT DESCRIPTION:

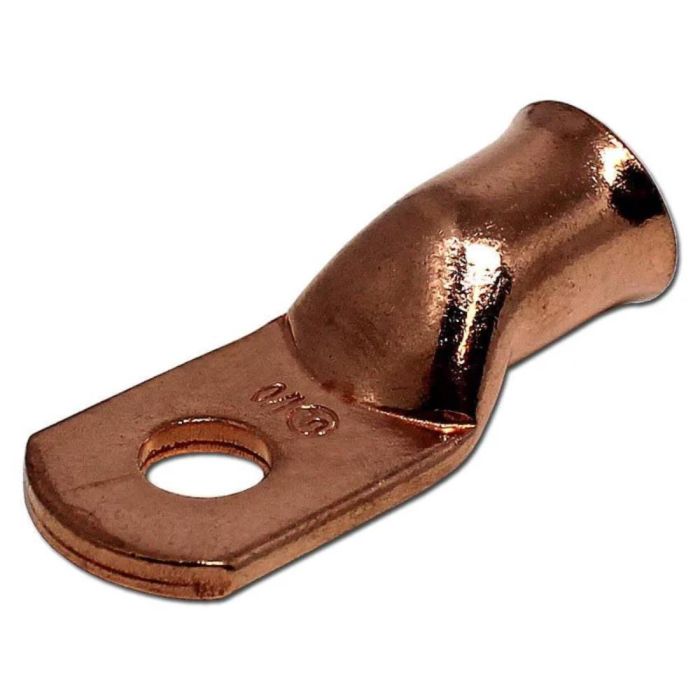

The CCL1012 copper cable lug (also referenced as BCL1012 in some catalogs) is a heavy-duty, one-hole battery cable terminal ideal for use with 1/0 AWG (American Wire Gauge) conductors. Designed to connect thick battery or welding cables securely to studs or busbars, this lug is made from pure copper to deliver excellent electrical conductivity and durability. The flared entry makes it easy to insert cable before crimping or soldering.

HIGHLIGHTS:

Excellent electrical performance and minimal resistive loss due to pure copper construction.

Certified for safety and environmental standards (UL, CE, RoHS, REACH).

Built for robust applications - battery, welding, and heavy power circuits.

Flared design ensures quick and easy cable insertion.

TECHNICAL SPECIFICATIONS:

Item Model Number: CCL1012

Wire Size: 1/0 AWG

Stud Size: 1/2"

Material: Pure Copper

Voltage Rating: Up to 35 kV

Tempreature Rating: Up to 90 °C

Length: 1.85"

Barrel Length: 0.43"

Outer Diameter: 0.73"

Inner Diameter (D1): 0.51"

Inner Diameter (D2): 0.41"

Width: 0.69"

Flat Section (E): 0.52"

Wall Thickness (F): 0.10"

Shipping Weight: 1 lb
