LUGS CABLE COPPER2/0 1/2"

PRODUCT DESCRIPTION:

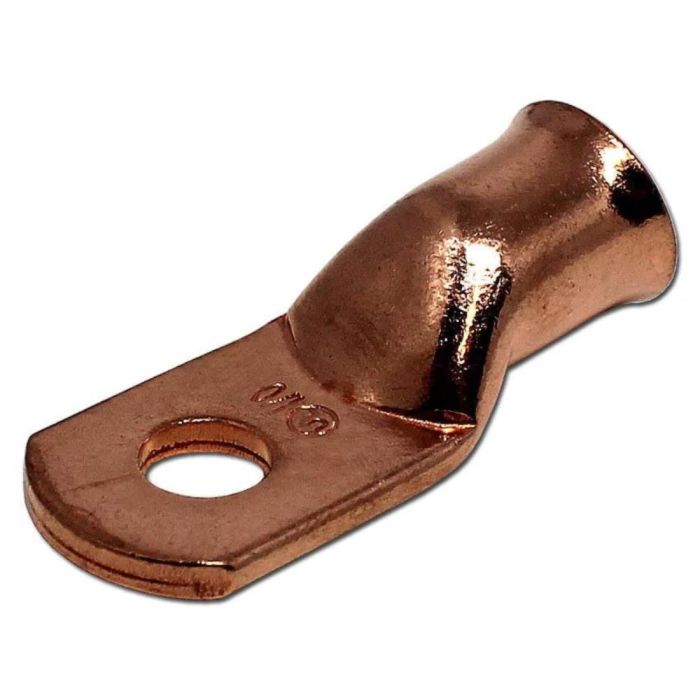

The CCL2012 - also referred to as BCL2012 on some catalogs - is a single-hole cable lug designed for 2/0 AWG conductors and uses a ½-inch stud. It’s made of 100% pure copper, which offers excellent electrical conductivity, and features a flared, closed barrel suitable for both crimping and soldering applications.

HIGHLIGHTS:

Exceptional conductivity and low resistance due to pure copper design.

Certified for safety and international standards.

Flared barrel supports efficient cable insertion.

Sized for heavy-duty usage with robust electrical and thermal performance.

TECHNICAL SPECIFICATIONS:

Item Model Number: CCL2012

Wire Size: 2/0 AWG

Stud Size: 1/2"

Material: Pure Copper

Voltage Rating: Up to 35kV

Tempreature Rating: Up to 90 °C

Length: 2.07"

Barrel Length: 0.48"

Outer Diameter: 0.83"

Inner Diameter (D1): 0.56"

Inner Diameter (D2): 0.46"

Width: 0.72"

Flat Section: 0.52"

Wall Thickness: 0.10"

Shipping Weight: 1 lb
