LUGS CABLE COPPER4/0 1/2"

PRODUCT DESCRIPTION:

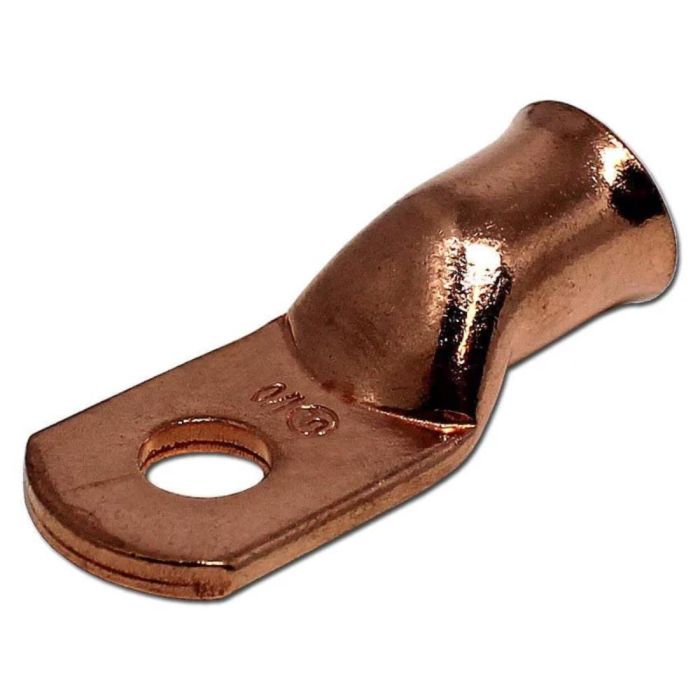

The CCL4012 Copper Cable Lug is a high-quality, tin-plated copper compression lug designed for reliable electrical connections. Engineered for 4/0 AWG conductors, it features a single-hole design for 1/2-inch bolts and offers excellent conductivity, corrosion resistance, and durability. Rated for up to 230 amps and 35 kV, it is suitable for industrial, battery, and high-current applications, and its standard barrel with sight window ensures secure and easy installation.

HIGHLIGHTS:

High Conductivity: Made from 100% pure copper, ensuring efficient electrical performance.

Corrosion Resistance: Tin-plated surface protects against oxidation, extending the lifespan of connections.

High Voltage Capacity: Suitable for applications up to 35 kV.

Durability: Designed to handle up to 230 amps, making it versatile for various electrical systems.

Easy Installation: Standard barrel with sight window facilitates secure crimping and soldering.

TECHNICAL SPECIFICATIONS:

Item Model Number: CCL4012

Product Type: Copper Compression Lug

Conductor Size: 4/0 AWG

Bolt Size: 1/2"

Material: Pure Copper

Voltage Rating: 35kV

Temperature Rating: 90°C

Length: 2.41"

Width: 1.02"

Barrel Length: 0.51"

Stud Hole Diameter: 0.69"

Shipping Weight: 1 lb
