FEEDER WIRE H/DUTY CC/CV
PRODUCT FEATURES
• Variac Control
•Input Circuit Breaker +100% Duty Cycle
•Polarity Insensitive
• Standard Inch/Purge
+ Gas Valve Solenoid
•Electromechanical Brake
• Quick Change Feed Rolls
+Gun Clamp Knob
•Welding Gun Quick Connects
Small Size Light Weight
•Replaceable Motor Brushes
+Needle Bearing Construction On Motor Output Shaft
• Variac Control
•Input Circuit Breaker +100% Duty Cycle
•Polarity Insensitive
• Standard Inch/Purge
+ Gas Valve Solenoid
•Electromechanical Brake
• Quick Change Feed Rolls
+Gun Clamp Knob
•Welding Gun Quick Connects
Small Size Light Weight
•Replaceable Motor Brushes
+Needle Bearing Construction On Motor Output Shaft
In stock
Only 4 left
SKU
TWCO-SP6877B001
TTD9,299.99
INCLUDES

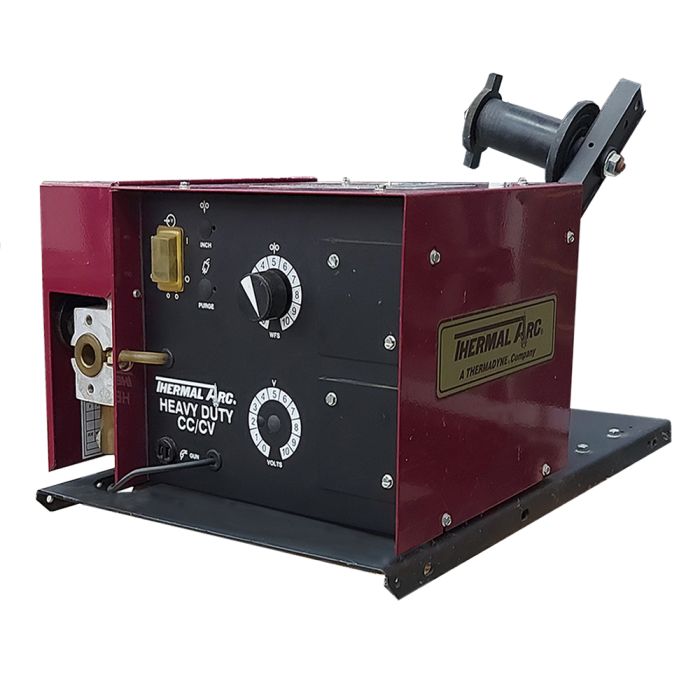

(1) Thermadyne Thermal Arc 17A Wire Welder Feeder Unit
PRODUCT DESCRIPTION
The 17A Series of wire feeders are equipped with an abundance of standard features, including an on/off switch, inchipurge switch, adjustable wire food spood control, quick change rolls and a 6/1.8m control cable. These feeders are designed to work with most power supplies that provide 120 VAC. (In some cases, an adapter cable or feminal strip wining modifications may be required)
TECHNICAL SPECIFICATIONS
PRODUCT SPECIFICATIONS:
• Input Voltage: 120 VAC
• Input Frequency: 50/60 Hz
Input Voltage Tolerance: +/-10%
• Maximum Input Current: 1.5 Amps
•Motor Voltage Range Motor Currant Range: 6-115 VDC
-Control Cable Supplied Std: 6ft. (1.8m)
•Motor Torque Range: 0-20 in. lbs.
•Motor Gear Ratio: 30-1
•Wire Speed Range: 30-650 IPM (76-1657 CPM)
• Feed Rolls: 2 (Both Driven)
Welding Current(): 525 A @ X = 60%
450 A @ X-100%
•Welding Gun/Torch Size: 5/8" Nominal
• Maximum Shielding Gas Inlet Pressure: 100 P.S.I
• Approvals: CSA NRTLIC, NEMA EW-3
Item Weight: 52lbs
Shipping Weight: 54lbs
(1) Thermadyne Thermal Arc 17A Wire Welder Feeder Unit
PRODUCT DESCRIPTION
The 17A Series of wire feeders are equipped with an abundance of standard features, including an on/off switch, inchipurge switch, adjustable wire food spood control, quick change rolls and a 6/1.8m control cable. These feeders are designed to work with most power supplies that provide 120 VAC. (In some cases, an adapter cable or feminal strip wining modifications may be required)
TECHNICAL SPECIFICATIONS
PRODUCT SPECIFICATIONS:
• Input Voltage: 120 VAC
• Input Frequency: 50/60 Hz
Input Voltage Tolerance: +/-10%
• Maximum Input Current: 1.5 Amps
•Motor Voltage Range Motor Currant Range: 6-115 VDC
-Control Cable Supplied Std: 6ft. (1.8m)
•Motor Torque Range: 0-20 in. lbs.
•Motor Gear Ratio: 30-1
•Wire Speed Range: 30-650 IPM (76-1657 CPM)
• Feed Rolls: 2 (Both Driven)
Welding Current(): 525 A @ X = 60%
450 A @ X-100%
•Welding Gun/Torch Size: 5/8" Nominal
• Maximum Shielding Gas Inlet Pressure: 100 P.S.I
• Approvals: CSA NRTLIC, NEMA EW-3
Item Weight: 52lbs
Shipping Weight: 54lbs
