PLASMA CUTMASTER 42 SL40
PRODUCT FEATURES
CUTMASTER 42 power supply
All new SL40 torch
Safety gloves & glasses
Instructional plasma cutting DVD
Consumables set
Heavy-duty carrying case
Power plug adapters
CUTMASTER 42 power supply
All new SL40 torch
Safety gloves & glasses
Instructional plasma cutting DVD
Consumables set
Heavy-duty carrying case
Power plug adapters
In stock
Only 2 left
SKU
VIC-1-4200
TTD18,999.00
INCLUDES

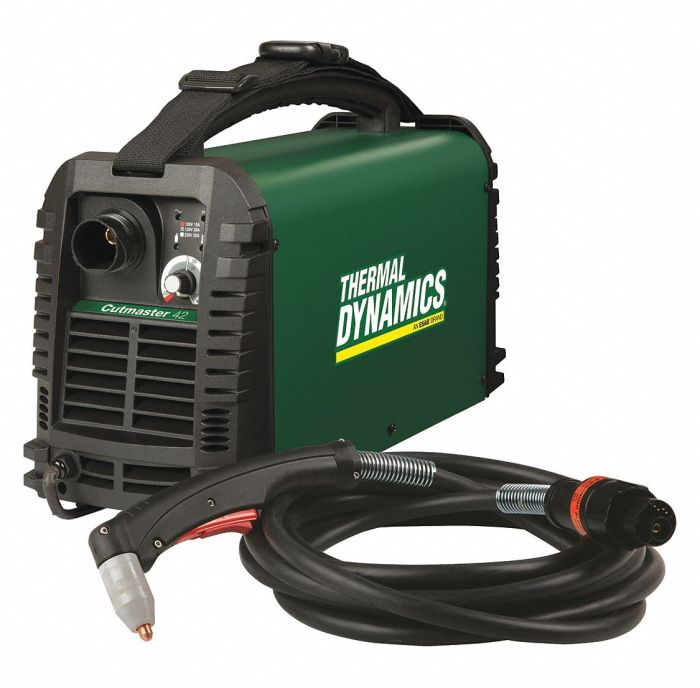

(1) Thermal Dynamics Cutmaster 42 Plasma Cutter #1-4200
PRODUCT DESCRIPTION
The Thermal Dynamics True Series Cutmaster 42 #1-4200 is not only one of the most affordable entry-level plasma systems on the market, it is also one of the few systems with the ability to increase power when switching from 120V to 230V. On 120V input, the Cutmaster delivers 27 Amps of output power. Switch to 230V input and you’ve got 40 Amps to work with. It literally gives you “The power of two machines in one.”
Designed to cut up to 1/4" with ease and up to 5/8" when needed, the Cutmaster 42 is perfect for DIY’ers, auto and marine repair, HVAC cutting, light fabrication, roofing construction and trade school use. Its portable, lightweight design and handy carrying case makes it easy to transport to different job sites, too. With the Cutmaster 42, you can work all day at the recommended cut capacity—and when you need that extra punch, you can be confident it’s there.
Since the Thermal Dynamics Cutmaster 42 incorporates Vent2Shield (V2S) technology, it can be run with a considerably smaller compressor--which means less weight to carry around and full compatibility with 120V. In addition to the carrying case, Cutmaster includes gloves, glasses and an SL40 plasma torch.
TECHNICAL SPECIFICATIONS
Process(es): Manual Air Plasma Cutting
Torch Model: SL40
Applications: Auto Body/Marine Repair
Plumbing &HVAC: Home Shop
Metal Building & Roofing
Construction
Rental Fleets
Recommended Cut - Inches (mm): 1/4" (6)
Max Cut - Inches (mm): 5/8" (15)
Piercing Rating - Inches (mm): 1/4" (6)
Rated Output: 40 Amps
Amperage Draw: 29A @ 120 V
15A @ 230V
Output Power (Kw): 3.8
Input Voltage - (Volts, Phase, Hz): 120/230V, 1, 50/60
Max Amperage Output - (Amps): 27 @ 120V
40 @ 230V
Duty Cycle (@40 degrees C): 40% @ 40A
Dimensions (H x W x L) Inches (mm): 9 x 7 x 18.5 (228 x 117 x 470)
Air Pressure - psi (bar): 75 (5.2)
Item Weight: 26 lbs.
Flow - Cfm (l/m): 3.2 (91)
Shipping Weight: 28lbs
(1) Thermal Dynamics Cutmaster 42 Plasma Cutter #1-4200
PRODUCT DESCRIPTION
The Thermal Dynamics True Series Cutmaster 42 #1-4200 is not only one of the most affordable entry-level plasma systems on the market, it is also one of the few systems with the ability to increase power when switching from 120V to 230V. On 120V input, the Cutmaster delivers 27 Amps of output power. Switch to 230V input and you’ve got 40 Amps to work with. It literally gives you “The power of two machines in one.”
Designed to cut up to 1/4" with ease and up to 5/8" when needed, the Cutmaster 42 is perfect for DIY’ers, auto and marine repair, HVAC cutting, light fabrication, roofing construction and trade school use. Its portable, lightweight design and handy carrying case makes it easy to transport to different job sites, too. With the Cutmaster 42, you can work all day at the recommended cut capacity—and when you need that extra punch, you can be confident it’s there.
Since the Thermal Dynamics Cutmaster 42 incorporates Vent2Shield (V2S) technology, it can be run with a considerably smaller compressor--which means less weight to carry around and full compatibility with 120V. In addition to the carrying case, Cutmaster includes gloves, glasses and an SL40 plasma torch.
TECHNICAL SPECIFICATIONS
Process(es): Manual Air Plasma Cutting
Torch Model: SL40
Applications: Auto Body/Marine Repair
Plumbing &HVAC: Home Shop
Metal Building & Roofing
Construction
Rental Fleets
Recommended Cut - Inches (mm): 1/4" (6)
Max Cut - Inches (mm): 5/8" (15)
Piercing Rating - Inches (mm): 1/4" (6)
Rated Output: 40 Amps
Amperage Draw: 29A @ 120 V
15A @ 230V
Output Power (Kw): 3.8
Input Voltage - (Volts, Phase, Hz): 120/230V, 1, 50/60
Max Amperage Output - (Amps): 27 @ 120V
40 @ 230V
Duty Cycle (@40 degrees C): 40% @ 40A
Dimensions (H x W x L) Inches (mm): 9 x 7 x 18.5 (228 x 117 x 470)
Air Pressure - psi (bar): 75 (5.2)
Item Weight: 26 lbs.
Flow - Cfm (l/m): 3.2 (91)
Shipping Weight: 28lbs
| SKU | VIC-1-4200 |
|---|---|
| Weight | 0.000000 |
| Manufacturer | VICTOR TECHNOLOGIES |
