AUTO INTRFACE KIT CM52152 CUTMASTER 52; 82; 102;152
9-8311
VICTOR
9-8311 Automation Interface Kit (1 Kit)
PRODUCT DESCRIPTION
AUTOMATION INTERFACE KITPART NO. 9-8311 For Cutmaster TRUE™ Series (52, 82, 102, and 152) This kit adds a divided low volt output for height controls that can use 50:1 arc voltage. Required for the Thermal Dynamics® SC-11 height control.
TECHNICAL SPECIFICATIONS
SCOPE:
This kit is for use only with the following Plasma Cutting Systems: Do not use this kit with any other equipment. CutMaster 52,82,102,152CutMaster 12mm,20mm,25mm,35mm, 40mm CutMaster A40, A60,A80,A120
THE KITS INCLUDE:

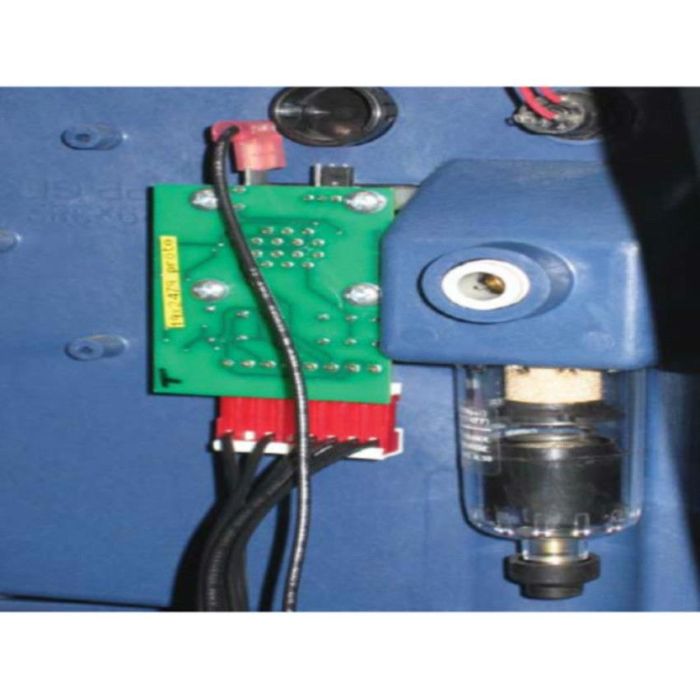

1. Automation Interface Pcb 9-8311
2. Wire Harness
3. (2) #6-32x3/8 Pan Head Screws
4. (2) M4x10mm Torx Head Screws
INSTALLATION PROCEDURE:
1. Remove the power supply cover.
2. Connect the supplied harness to the Automation Interface Pcb by attaching the Fast-on terminal onto the mating male terminal and the 8 socket receptacle onto the P2 connector.
3. Remove the lower hole plug from the rear panel.
Weight: 3 lbs"
In stock
Only 5 left
SKU
VIC-9-8311
TTD2,899.95
9-8311
VICTOR
9-8311 Automation Interface Kit (1 Kit)
PRODUCT DESCRIPTION
AUTOMATION INTERFACE KITPART NO. 9-8311 For Cutmaster TRUE™ Series (52, 82, 102, and 152) This kit adds a divided low volt output for height controls that can use 50:1 arc voltage. Required for the Thermal Dynamics® SC-11 height control.
TECHNICAL SPECIFICATIONS
SCOPE:
This kit is for use only with the following Plasma Cutting Systems: Do not use this kit with any other equipment. CutMaster 52,82,102,152CutMaster 12mm,20mm,25mm,35mm, 40mm CutMaster A40, A60,A80,A120
THE KITS INCLUDE:
1. Automation Interface Pcb 9-8311
2. Wire Harness
3. (2) #6-32x3/8 Pan Head Screws
4. (2) M4x10mm Torx Head Screws
INSTALLATION PROCEDURE:
1. Remove the power supply cover.
2. Connect the supplied harness to the Automation Interface Pcb by attaching the Fast-on terminal onto the mating male terminal and the 8 socket receptacle onto the P2 connector.
3. Remove the lower hole plug from the rear panel.
Weight: 3 lbs"
| SKU | VIC-9-8311 |
|---|---|
| Weight | 3.000000 |
| Manufacturer | VICTOR TECHNOLOGIES |
