WELDER STICK 460V RENEGAD
PRODUCT FEATURES
Extreme power to weight ratio in a most compact format. Rugged composite casing for durability in the roughest environments
For professional MMA welding with electrodes up to 6 mm with a high duty cycle of 300 A at 40%. Ideal for operation in high ambient temperatures
The machine automatically provides operators with the optimal start and stop parameters based on the set welding current
A booster circuit provides additional voltage for superior cellulosic arc starts and welding performance
3 memory settings for easy and quick access to welding parameters
Extreme power to weight ratio in a most compact format. Rugged composite casing for durability in the roughest environments
For professional MMA welding with electrodes up to 6 mm with a high duty cycle of 300 A at 40%. Ideal for operation in high ambient temperatures
The machine automatically provides operators with the optimal start and stop parameters based on the set welding current
A booster circuit provides additional voltage for superior cellulosic arc starts and welding performance
3 memory settings for easy and quick access to welding parameters
In stock
Only 1 left
SKU
ES-ES300I
TTD33,999.95
INCLUDES
(1) Renegade ES 300i
PRODUCT DESCRIPTION

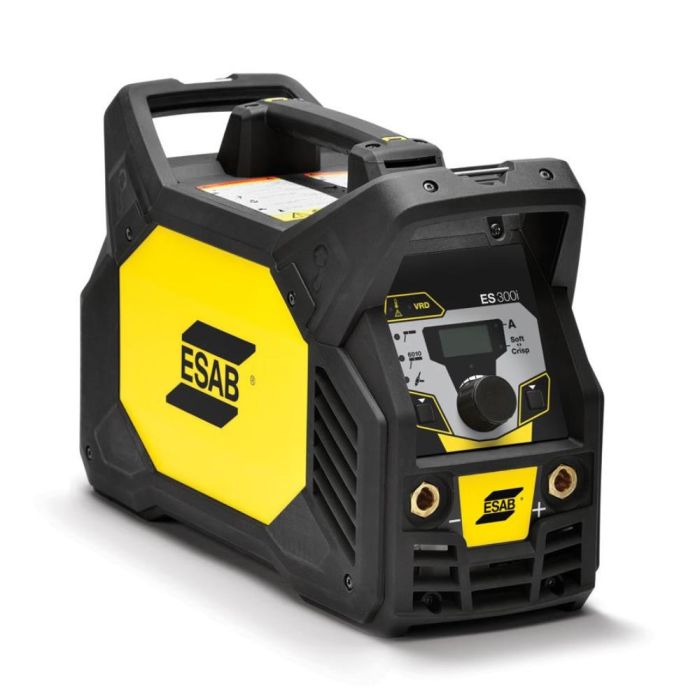

Renegade ES 300i is an inverter based MMA/Stick and LiveTIG machine with extreme power to weight ratio. The compact format makes it easy to carry and bring to any jobsite. Combined with high duty cycle and the ability to run the machine on long mains and welding cable makes this a superior welding machine for both on-and off site applications.
The machine has an automatic input voltage sensor and can operate with any input voltage between 230 V and 480 V 3-phase.
TECHNICAL SPECIFICATIONS
Voltage: 230 VAC 1, 50/60 Hz, 230-480 VAC 3, 50/60 Hz
Max Output: 300 A
Stick (MMA) Welding Output: 300 A / 32.0 V @ 40 % Duty Cycle
250 A / 30.0 V @ 60 % Duty Cycle
200 A / 28.0 V @ 100 % Duty Cycle
TIG (GTAW) Welding Output: 300 A / 22.0 V @ 60 % Duty Cycle
250 A / 20.0 V @ 100 % Duty Cycle
Current Range: 5-300 A
Open Circuit Voltage: 48 V
32 V
Power Factor at Maximum Current: 0.96
Efficiency at Maximum Current: 89 %
85 %
Fuse Slow: 10 A
20 A (230 VDC)
Energy Save Mode: 91 W
Supply Plug: CEE 16 A
rated kVA: 11.3 kVA
Enclosure Class: IP23
Application Class: S
Certification: CE
Dimensions, L x W x H: 460 x 200 x 320 mm
Item Weight: 33.1lbs
Shipping Weight: 36lbs
(1) Renegade ES 300i
PRODUCT DESCRIPTION
Renegade ES 300i is an inverter based MMA/Stick and LiveTIG machine with extreme power to weight ratio. The compact format makes it easy to carry and bring to any jobsite. Combined with high duty cycle and the ability to run the machine on long mains and welding cable makes this a superior welding machine for both on-and off site applications.
The machine has an automatic input voltage sensor and can operate with any input voltage between 230 V and 480 V 3-phase.
TECHNICAL SPECIFICATIONS
Voltage: 230 VAC 1, 50/60 Hz, 230-480 VAC 3, 50/60 Hz
Max Output: 300 A
Stick (MMA) Welding Output: 300 A / 32.0 V @ 40 % Duty Cycle
250 A / 30.0 V @ 60 % Duty Cycle
200 A / 28.0 V @ 100 % Duty Cycle
TIG (GTAW) Welding Output: 300 A / 22.0 V @ 60 % Duty Cycle
250 A / 20.0 V @ 100 % Duty Cycle
Current Range: 5-300 A
Open Circuit Voltage: 48 V
32 V
Power Factor at Maximum Current: 0.96
Efficiency at Maximum Current: 89 %
85 %
Fuse Slow: 10 A
20 A (230 VDC)
Energy Save Mode: 91 W
Supply Plug: CEE 16 A
rated kVA: 11.3 kVA
Enclosure Class: IP23
Application Class: S
Certification: CE
Dimensions, L x W x H: 460 x 200 x 320 mm
Item Weight: 33.1lbs
Shipping Weight: 36lbs
| SKU | ES-ES300I |
|---|---|
| Weight | 36.000000 |
| Manufacturer | ESAB |
