WIRE MIG ER5356 3/64X1
PRODUCT FEATURES:
Premium ER5356 aluminum MIG welding wire for Gas Metal Arc Welding (GMAW/MIG).
3/64 in. (1.2 mm) wire diameter is ideal for medium- and heavy-duty aluminum welding.
Contains approximately 5% magnesium for high strength and excellent corrosion resistance.
Designed for welding 5000-series aluminum alloys, including 5050, 5052, 5083, 5356, 5454, and 5456.
Produces a white post-anodizing weld color, making it ideal for anodized aluminum applications.
Excellent resistance to saltwater corrosion, making it suitable for marine environments.
Superior wire cleanliness and feedability for stable arc performance and smooth feeding.
Certified Material Test Reports (CMTRs) available.
Meets AWS A5.10 ER5356 and UNS A95356 specifications.
Compatible with spool guns and push-pull MIG welding systems.
In stock
Only 170 left
SKU
OX-5356364X1
TTD100.40
INCLUDES:

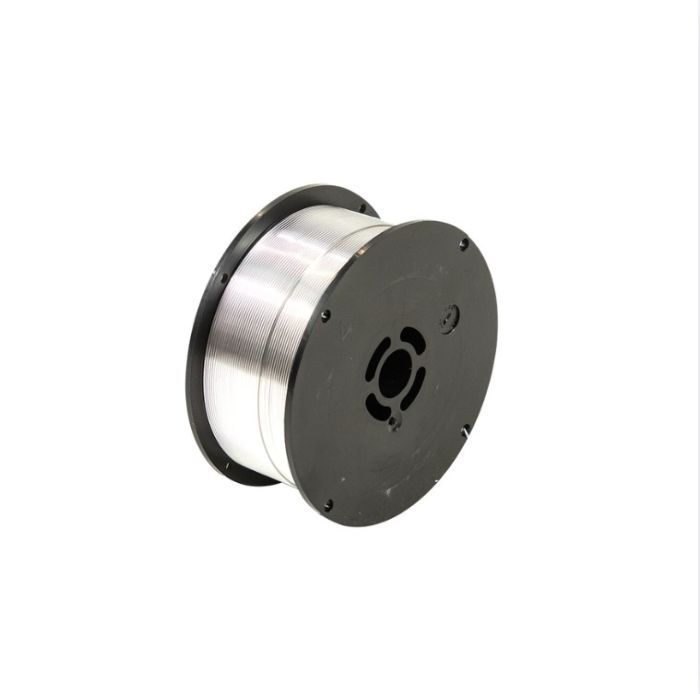

[1] 1LB Spool of ER5356 Aluminum MIG Wire [3/64]
PRODUCT DESCRIPTION:
The Oxford Alloy OXF53563-64X1 ER5356 Aluminum MIG Wire is a professional-grade aluminum filler metal designed for high-quality MIG welding applications. Manufactured with approximately 5% magnesium, it offers excellent tensile strength, ductility, corrosion resistance, and smooth wire feeding. The 3/64-inch diameter is ideal for thicker aluminum sections and higher deposition rates, making it a preferred choice for marine fabrication, transportation equipment, structural aluminum, and industrial manufacturing.
CHEMICAL COMPOSITION:
Si: 0.25 max
Fe: 0.40 max
Cu: 0.10 max
Mn: 0.05 - 0.20
Mg: 4.5 - 5.5
Cr: 0.05 - 0.20
Zn: 0.10 max
Ti: 0.06 - 0.20
Al: Bal
OEE: 0.05 max
OET: 0.15 max
MECHANICAL PROPERTIES:
AWS Requirements:
Tensile Strength MPa [ksi]: Not Specified
Yield Strength MPs [ksi]: Not Specified
Elongation %: Not Specified
Typical Results - As welded:
Tensile Strength MPa [ksi]: 270 [39]
Yield Strength MPs [ksi]: 130 [19]
Elongation %: 17
TECHNICAL SPECIFICATIONS:
Brand: Oxford Alloy
Item Model Number: OXF53563-64X1
Product Type: Aluminum MIG Welding Wire
AWS Classifications: ER5356
AWS Specification: AWS A5.10
UNS Number: A95356
Welding Process: GMAW [MIG]
Wire Diameter: 3/64" [1.2mm]
Spool Weight: 1 lb
Wire Composition: Aluminun Alloy with 4.5 - 5.5 % Magnesium
Polarity: DCEP [Direct Current Electrode Positive]
Recommended Shielding Gas: 100% Argon
Shipping Weight: 1lb
| SKU | OX-5356364X1 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | OXFORD ALLOY |
