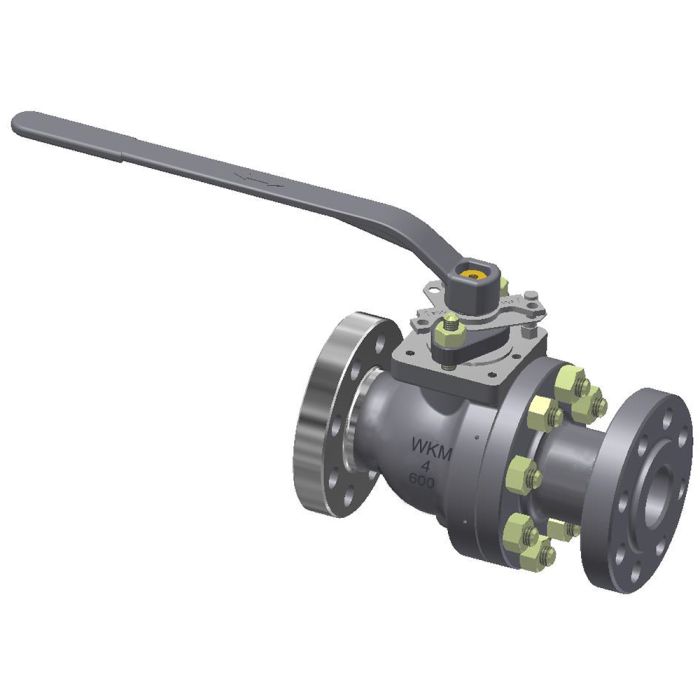

BALL VALVE 600# PR 316 CS B&S RF DELRIN SEAT PTFE SEAL 4"
The WKM 320F Series floating ball valve is equipped with a patented seat design that allows for internal cavity relief while ensuring robust bidirectional sealing capability.
Key Advantages:
- Bidirectional Sealing: Ensures reliable sealing in both directions for enhanced performance.
- Built-in Cavity Relief: Prevents excessive pressure buildup around the ball, optimizing safety and valve longevity.
- Low Break-to-Open Torque: Reduces actuation requirements, providing easier operation and improved efficiency.
Additionally, every WKM 320F Series valve meets rigorous industry standards, including:
- NACE Compliance for resistance to sulfide stress cracking in sour service conditions.
- Fugitive Emissions Capabilities to minimize harmful leaks.
- Fire-Test Certification in accordance with API Spec 607, 7th Edition, ensuring high performance even in extreme conditions.
In stock
Only 4 left
SKU
314-WKM600CS24
WKM 320F™ flanged floating ball valves are engineered for heavy-duty, maintenance-free performance across a variety of applications in virtually any industry.
Sizes: 4 in–8×6 in
Features:
Bidirectional sealing
Carbon or stainless steel trims
Adjustable stem packing
Positively retained stem
Applications:
Chemical and petrochemical industries
Oil and gas production
Oil refining
Power generation
Pig launchers and receivers
Gas transmission
Hydrogen, CCUS, renewable fuels, and ammonia serviceE MR0175/ISO 15156.
The handle can be correctly installed only in alignment with the ball port. The valve is open when the handle is aligned with piping and is closed when the handle is perpendicular to piping.
WKM 320F* flanged floating ball valves satisfy a wide range of applications. Available in a variety of standard and optional materials, the valves are engineered for heavy-duty, maintenance-free performance and serve a variety of applications in virtually any industry.
Chemical and petrochemical plants
There is a wide range of chemical and petrochemical applications for WKM 320F ball valves. They serve in plastic plants, handling such slurries as 40% vinyl chloride in high-pressure catalyst lines, and in processes, handling dry lading such as polyethylene and polystyrene powders.
Refining
The WKM 320F ball valve is ideal for the refining industry. The many seats, seals, and trims available offer the versatility to handle the widev ariety of products used in the refining process.
Low-temperature service
Standard trims accommodate temperatures to −20 degF [−29 degC], and temperature trims are available to −50 degF [−46 degC].
Maintenance-free performance
Under most conditions, the WKM 320F ball valve will provide years of trouble-free service with no maintenance required. In some severe applications, such as handling extremely abrasive slurries at high temperature, it may be necessary to replace the seats occasionally. Seat and seal kits are available, and replacement can be done easily with ordinary tools.
Sour oil and gas service
WKM* valves have served for years in gathering lines, manifolds, and field processing units in sour oil and gas fields. All trim combinations conform with NACE MR0175/ISO 15156.
Specifications
ASME Classes 150 through 600
Operating temperatures
-From –50 to 500 degF [–46 to 260 degC]
Standard material
Body
-Carbon steel and stainless steel
Ball and stem
-Carbon steel and stainless steel
-Optional materials available upon request
Industry compliance
-American Society of Mechanical Engineers
(ASME) Standards B16.5 and B16.34
-Manufacturers Standardization Society
Specifications MSS SP-25, 55, and 72
-API Spec 607 7th Ed. fire-test specification
-Canadian Registration Number (CRN)
-API Spec 608
-NACE MR0175
-ANSI Standard B16.34
-API Spec 6D upon request
-ISO or API fugitive emissions upon request
-European Pressure Equipment Directive
(PED/CE) available upon request.
| SKU | 314-WKM600CS24 |
|---|---|
| Manufacturer | WKM VALVES |
