VGA 800 WB SWXNP LF2 3/4". A105 TR8
The Smith Standard Forged Steel Gate Valve, threaded end with bolted bonnet, A105 material, is a compact, high-strength shut-off valve designed for reliable performance in high-pressure and high-temperature applications. Constructed from ASTM A105 forged carbon steel, it provides excellent durability, toughness, and resistance to mechanical stress, making it well suited for oil & gas, petrochemical, power, and industrial piping systems. The bolted bonnet design ensures secure sealing and easy maintenance access, while the threaded (NPT) ends allow quick installation in smaller pipelines. Engineered to API 602 / ASME B16.34 standards, this valve delivers tight shut-off with minimal pressure drop and is ideal for applications requiring a rugged, leak-tight solution in sizes up to 2" and pressure classes up to 2500.
SIZES:
1/4" - 3"
PRESSURE CLASS:
150, 300, 600, 800, 1500, 2500
DESIGN SPECIFICATIONS & COMPLIANCE:
API 591/598/602/624
ASME B16.34
NACE MR-0175
NACE MR-0103
END CONNECTIONS:
Threaded, Socketweld, Flanged, Buttweld
BONNET DESIGNS:
Bolted, Welding
In stock
Only 2 left
SKU
310-SGFSBBSW881
The Smith Standard Forged Steel Gate Valve, threaded end with bolted bonnet, A105 material, is a compact, high-strength shut-off valve designed for reliable performance in high-pressure and high-temperature applications. Constructed from ASTM A105 forged carbon steel, it provides excellent durability, toughness, and resistance to mechanical stress, making it well suited for oil & gas, petrochemical, power, and industrial piping systems. The bolted bonnet design ensures secure sealing and easy maintenance access, while the threaded (NPT) ends allow quick installation in smaller pipelines. Engineered to API 602 / ASME B16.34 standards, this valve delivers tight shut-off with minimal pressure drop and is ideal for applications requiring a rugged, leak-tight solution in sizes up to 2"" and pressure classes up to 2500.

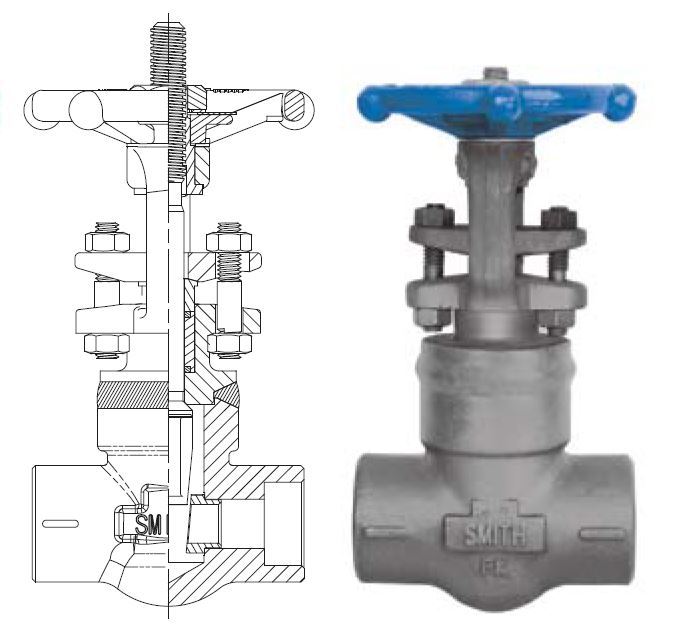

DIAAGRAM:

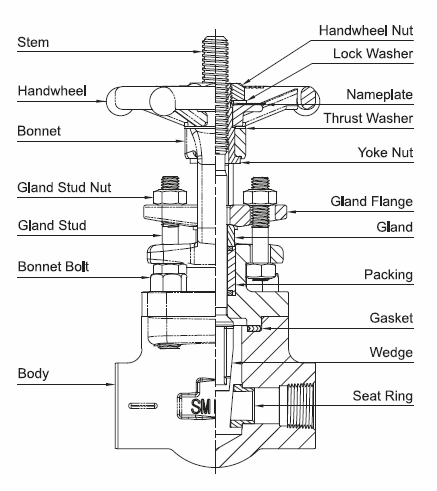

MATERIAL LIST:
DESIGN & CONSTRUCTION:
API 602, ASME B16.34
Bolted & welded bonnet
Reduced and full port
Threaded, Socketweld, Buttweld ends
class 800 to 2500
Flanged ends class 150 to 2500
Bonnet constructed of forged steel with
integral backseat
Nameplate serialized for full traceability
API 622 and API 624 qualified packing
for low emissions

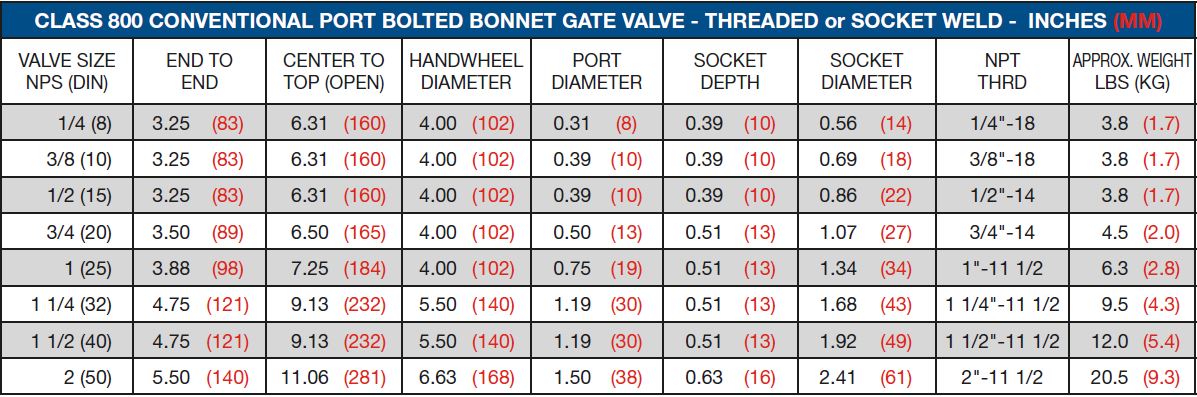

DIMENSIONAL DATA:

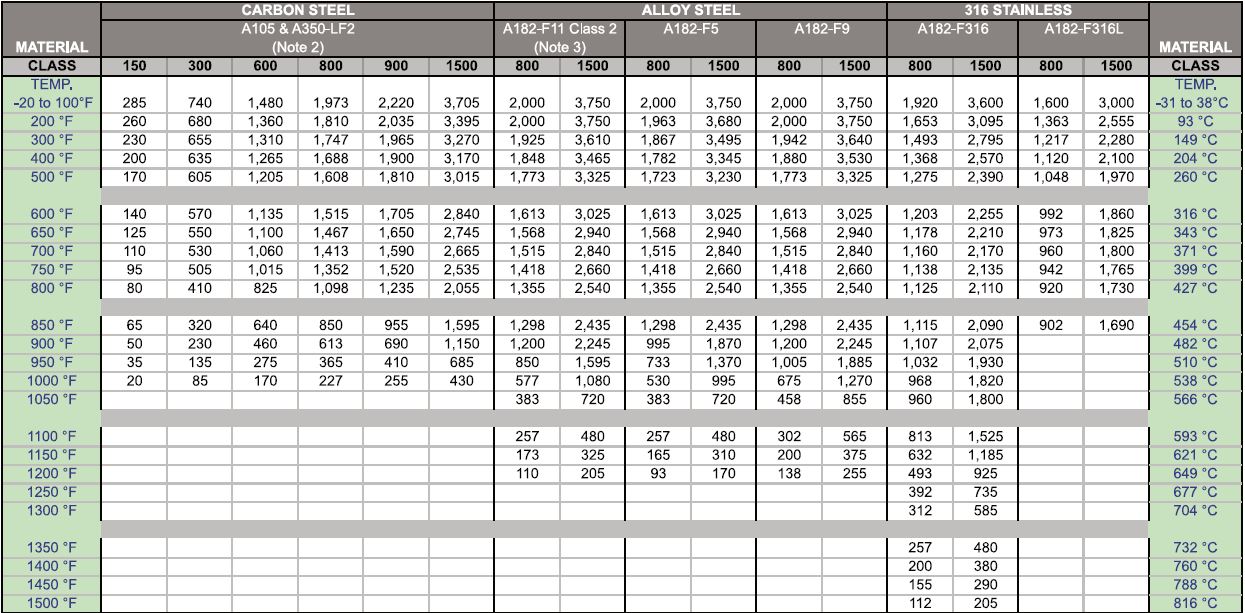

PRESSURE TEMPERATURE CHART, PSI:
PRODUCT NUMBERING SYSTEM:
| SKU | 310-SGFSBBSW881 |
|---|---|
| Weight | 5.000000 |
| Manufacturer | SMITH VALVES. |
